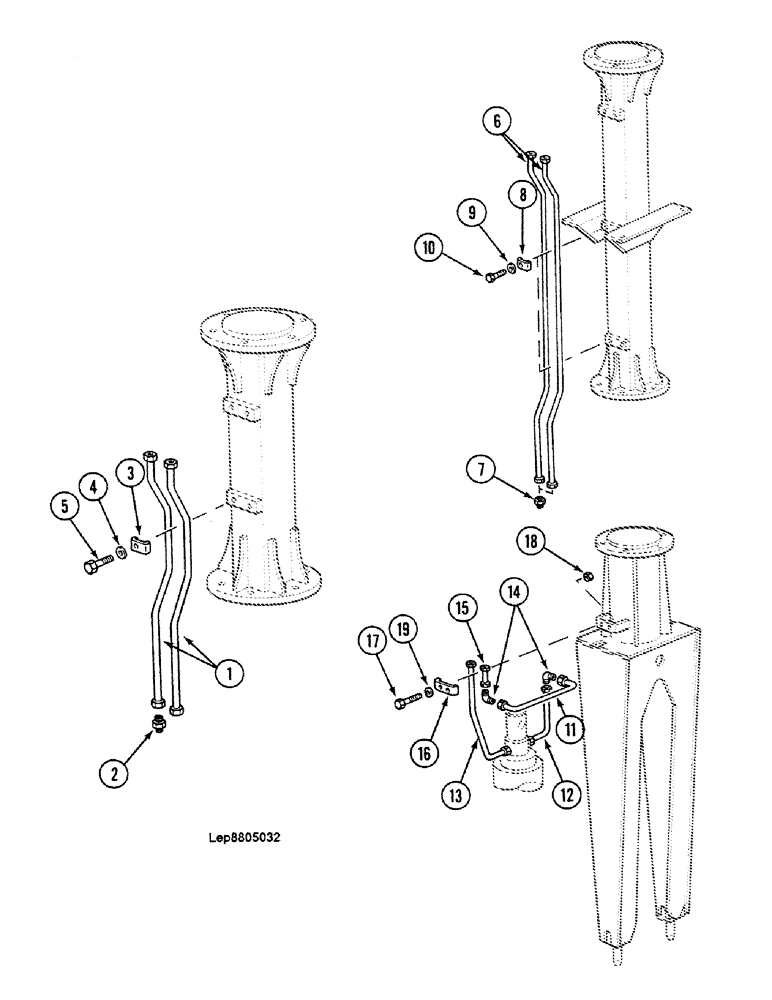

Запчасти Case 688C (8G-058) - LONG-MOUNT HYDRAULIC CIRCUIT, LONG-MOUNT EXTENSION 0.70M (07) - HYDRAULIC SYSTEM

1

W749107

PIPE

2шт.

2

Q37550

UNION

2шт.

3

W26746

PIPE CLAMP

2шт.

4

E34711

WASHER

W10

2шт.

5

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

6

V749106

PIPE

Long-Mount Extension 1.30 meters

2шт.

7

Q37550

UNION

Long-Mount Extension 1.30 meters

2шт.

8

W26746

PIPE CLAMP

Long-Mount Extension 1.30 meters

4шт.

9

E34711

WASHER

W10, Long-Mount Extension 1.30 meters

4шт.

10

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Long-Mount Extension 1.30 meters

4шт.

11

J1447697

PIPE

Long-Mount Attachment Clamshell Suspension Frame

1шт.

12

B1447115

PIPE

Long-Mount Attachment Clamshell Suspension Frame

1шт.

13

H1447696

PIPE

Long-Mount Attachment Clamshell Suspension Frame

1шт.

14

W37073

ELBOW-CONNECTION

ELBOW-CONECTION Long-Mount Attachment Clamshell Suspension Frame

2шт.

15

C1137674

PIPE

Long-Mount Attachment Clamshell Suspension Frame

1шт.

16

H726025

SHIN

BRACKET Long-Mount Attachment Clamshell Suspension Frame

1шт.

17

M33821

SCREW

M8 x 45, Long-Mount Attachment Clamshell Suspension Frame

2шт.

18

43362

NUT,M8 x 1.25, Cl 10

Long-Mount Attachment Clamshell Suspension Frame

2шт.

19

C34709

WASHER

W8, Long-Mount Attachment Clamshell Suspension Frame

2шт.
