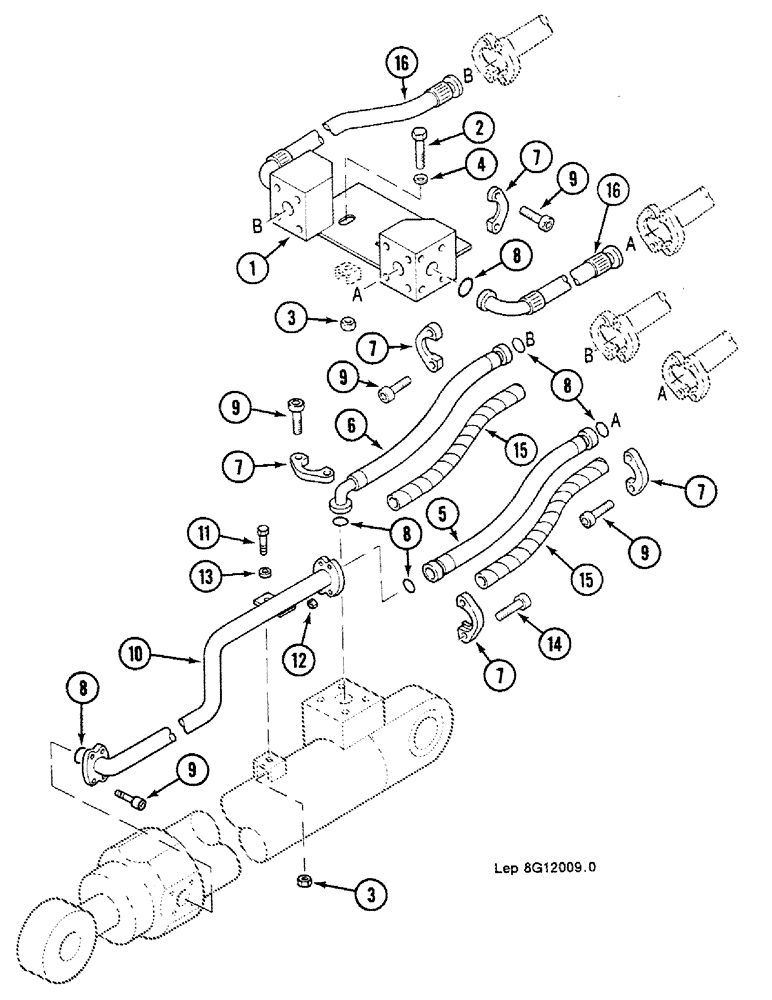

Запчасти Case 688C (8G-050) - BUCKET CONTROL FEED (DIPPERSTICK 1.50M-2.10M-2.65M), (XXXXX-) (07) - HYDRAULIC SYSTEM

1

Z5328271

ELEC SUPPORT PLATE

On Arm : 1.50M

1шт.

2

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

3

G34598

SAFETY NUT

M10

4шт.

4

N4328796

WASHER

"10.25 x 7 x 20"

3шт.

5

Q5931990

HOSE

500mm, On Arm : 1.50M

1шт.

5

X6531929

HOSE

1600mm, On Arm : 2.10M

1шт.

5

K7631915

HOSE

1800mm, On Arm : 2.65M

1шт.

6

H5931914

HOSE

500mm, Arm : 1.50M

1шт.

6

W5431999

HOSE

1600mm, On Arm : 2.10M

1шт.

6

A5931999

HOSE

1800mm, On Arm : 2.65M

1шт.

7

C4024266

CLAMP

half

12шт.

8

L1130483

O-RING

"3.53 x 24.99-80"

8шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

10

B9047695

PIPE

1шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

12

86500689

NUT,M10 x 1.5, Cl 10

4шт.

13

W3528795

WASHER

"10.25 x 7 x 25"

1шт.

14

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

4шт.

15

P1103622

PROTECTOR

Order Length : 1400mm, On Arm : 2.10M

2шт.

15

P1103622

PROTECTOR

Order Length : 1600mm, On Arm : 2.65M

2шт.

16

V5431998

HOSE

1250mm, On Arm : 1.50M

2шт.
