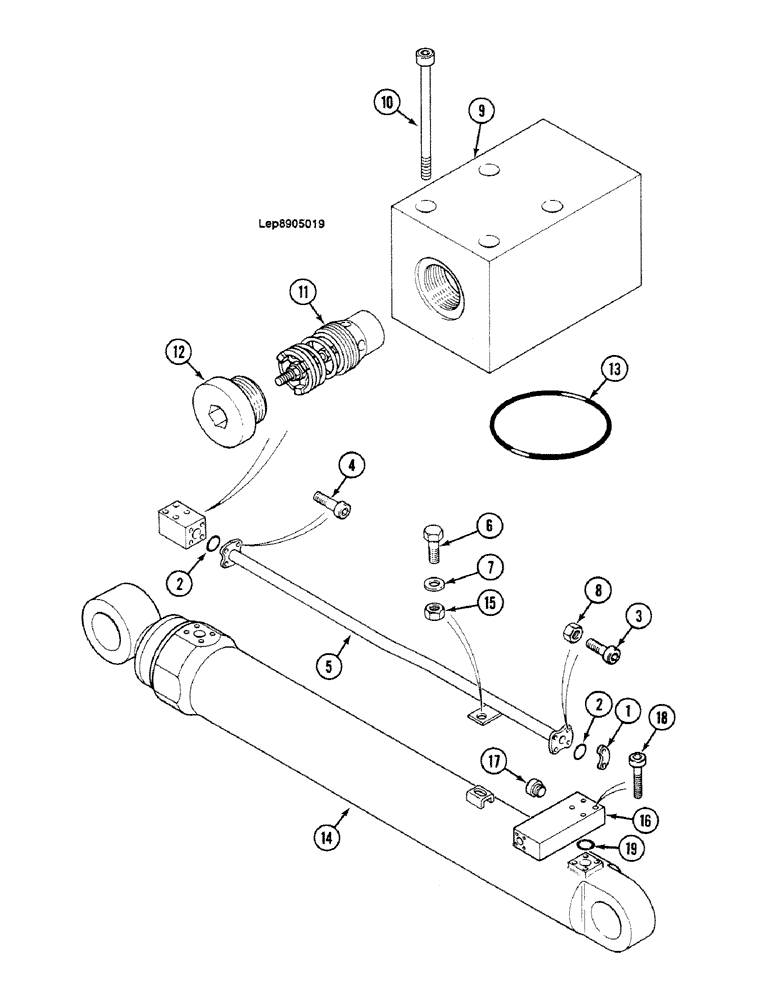

Запчасти Case 688C (8G-038) - CYLINDER ARM (ADJUSTABLE BOOM) (07) - HYDRAULIC SYSTEM

1

C4024266

CLAMP

half

2шт.

2

L1130483

O-RING

"3.53 x 24.99-80"

2шт.

3

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

4шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

X8747634

PIPE

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

7

W3528795

WASHER

"10.25 x 7 x 25"

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

4шт.

A4343389

SHIN

BRACKET Consist Of : 9-13

1шт.

9

BODY Order : A4343389

1шт.

10

M632925

SCREW

M10 x 70

4шт.

11

X4343387

LIMITER, TRAVEL

LIMITER

1шт.

12

A2537429

PLUG

1шт.

V5746063

GASKET

"23.9 x 29.2 x 1.5"

1шт.

13

L1130483

O-RING

"3.53 x 24.99-80"

1шт.

14

CYLINDER, See Figure : 8G-84 - 8G-88

1шт.

15

G34598

SAFETY NUT

M10

1шт.

R4343312

SHIN

BLOCK Consist Of : 16-19

1шт.

16

BODY Order : R4343312

1шт.

17

H2537413

PLUG

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

18

L632924

SCREW

M10 x 55 10.9

4шт.

19

L1130483

O-RING

"3.53 x 24.9-80"

1шт.
