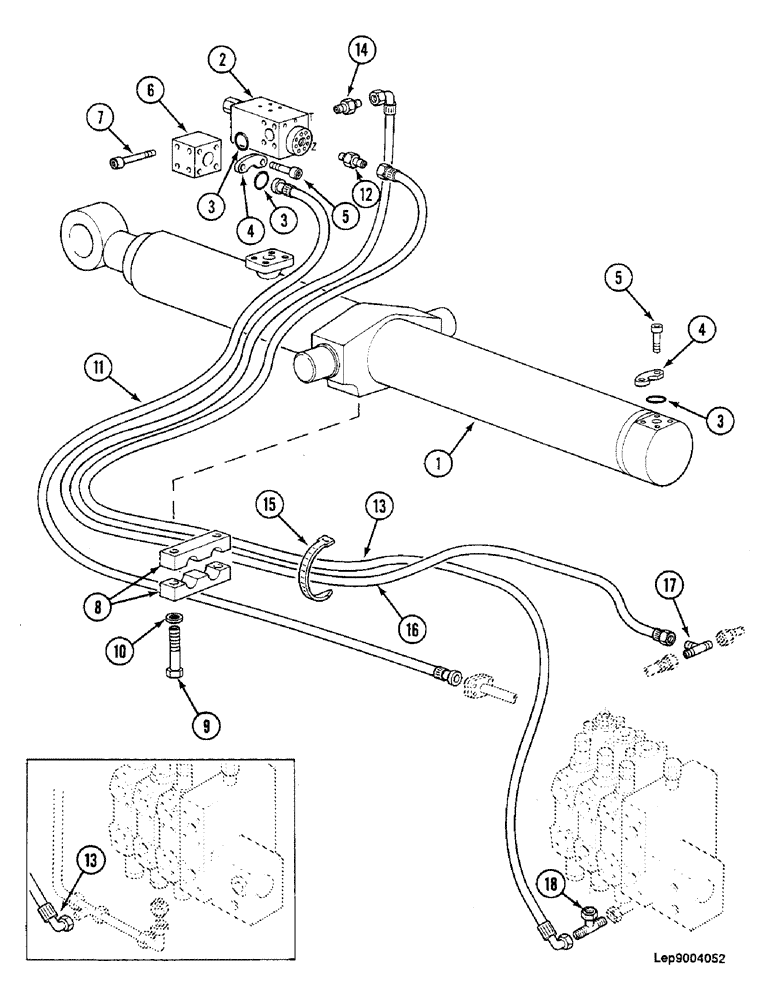

Запчасти Case 688C (8G-034) - DIPPERSTICK CYL. WITH LOAD HOLDING VALVE (OFFSET BACKHOE (07) - HYDRAULIC SYSTEM

1

CYLINDER, See Figure :, Serial Range: 8G-90-8G-94

1шт.

2

BLOCK, See Figure : 8G-136

1шт.

3

L1130483

O-RING

"3.53 x 24.99-80"

3шт.

4

C4024266

CLAMP

half

4шт.

5

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

6

V1737025

ANGLE

PIECE

1шт.

7

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

4шт.

8

Z4420392

SHIN

BRACKET

2шт.

9

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

2шт.

10

N4328796

WASHER

"10.25 x 7 x 20"

2шт.

11

U5931994

HOSE

1400mm

1шт.

12

K3237581

UNION

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

13

T7331934

HOSE

600mm

1шт.

14

H3237533

UNION

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

15

N51946

CLAMP

COLLAR 258mm

1шт.

16

U7331935

HOSE

6000mm

1шт.

17

E937277

TEE

PIECE

1шт.

18

W937293

TEE

PIECE (10770, 10773-)::

1шт.
