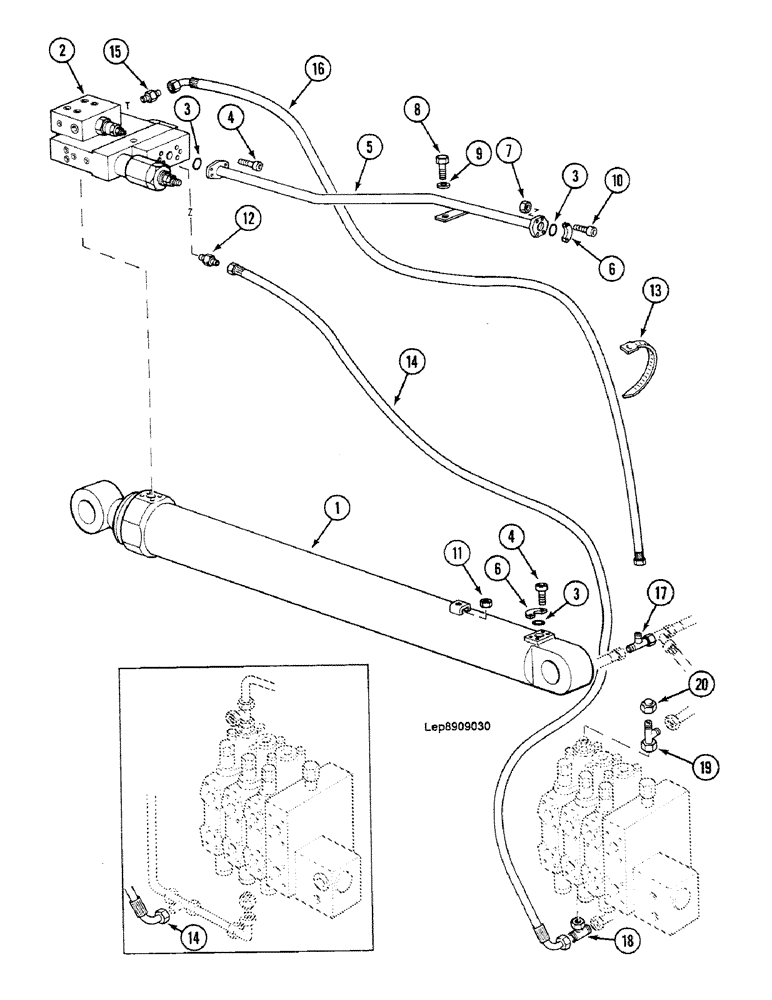

Запчасти Case 688C (8G-030) - DIPPERSTICK CYLINDER FITTED WITH SAFETY DEVICE (07) - HYDRAULIC SYSTEM

1

CYLINDER, See Figure :, Serial Range: 8G-84-8G-88

1шт.

2

BRACKET, See Figure :, Serial Range: 8G-136-8G-140

1шт.

3

L1130483

O-RING

"3.53 x 24.99-80"

3шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

M10 x 75

8шт.

5

C8747684

PIPE

1шт.

6

C4024266

CLAMP

half

4шт.

7

100016

NUT,M10 x 1.5, Cl 8

4шт.

8

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

9

W3528795

WASHER

"10.25 x 7 x 25"

1шт.

10

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

4шт.

11

G34598

SAFETY NUT

M10

1шт.

12

K3237581

UNION

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

13

N51946

CLAMP

COLLAR 258mm

1шт.

14

T7331934

HOSE

6000mm

1шт.

15

H3237533

UNION

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

16

T6531994

HOSE

5600mm

1шт.

17

B937297

TEE

PIECE

1шт.

18

W937293

TEE

PIECE angle (10770, 10773-)::

1шт.

19

Z937295

TEE

PIECE angle (10770, 10773-)::

1шт.

20

A2537406

BLANK-OFF PLUG

(10770, 10773-)::

1шт.
