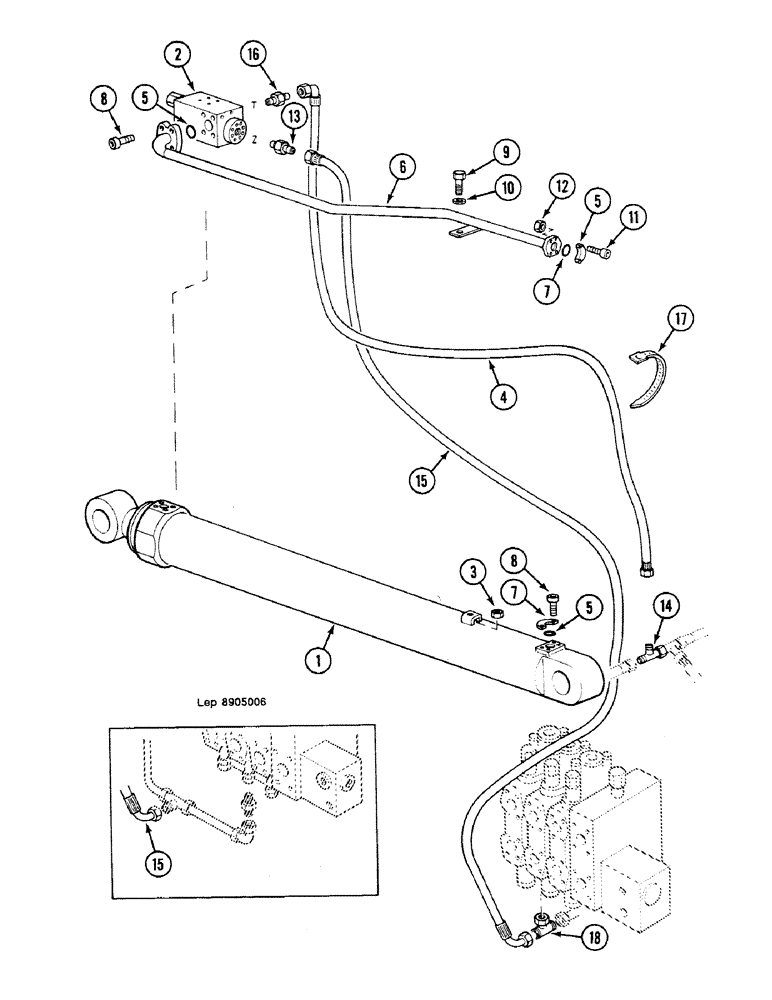

Запчасти Case 688C (8G-028) - DIPPERSTICK CYLINDER WITH LOAD HOLDING VALVE (07) - HYDRAULIC SYSTEM

1

CYLINDER, See Figure : 8G-84 - 8G-88

1шт.

2

BLOCK, See Figure : 8G-136

1шт.

3

G34598

SAFETY NUT

M10

1шт.

4

U7331935

HOSE

6000mm

1шт.

5

L1130483

O-RING

"3.53 x 24.99-80"

3шт.

6

U8747631

PIPE

1шт.

7

C4024266

CLAMP

half

4шт.

8

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

9

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

10

W3528795

WASHER

"10.25 x 7 x 25"

1шт.

11

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

4шт.

12

86500689

NUT,M10 x 1.5, Cl 10

4шт.

13

K3237581

UNION

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

14

PIECE tee, See Figure : 8G-4

1шт.

15

T7331934

HOSE

6000mm

1шт.

16

H3237533

UNION

1шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

17

N51946

CLAMP

COLLAR 258mm

1шт.

18

W937293

TEE

PIECE (10770, 10773-)::

1шт.
