(8G-018) - MOBILE SECTION HYDRAULIC CIRCUIT (REMOTE-CONTROLLED BOOM), (-XXXXX)

Запчасти Case 688C (8G-018) - MOBILE SECTION HYDRAULIC CIRCUIT (REMOTE-CONTROLLED BOOM), (-XXXXX) (07) - HYDRAULIC SYSTEM

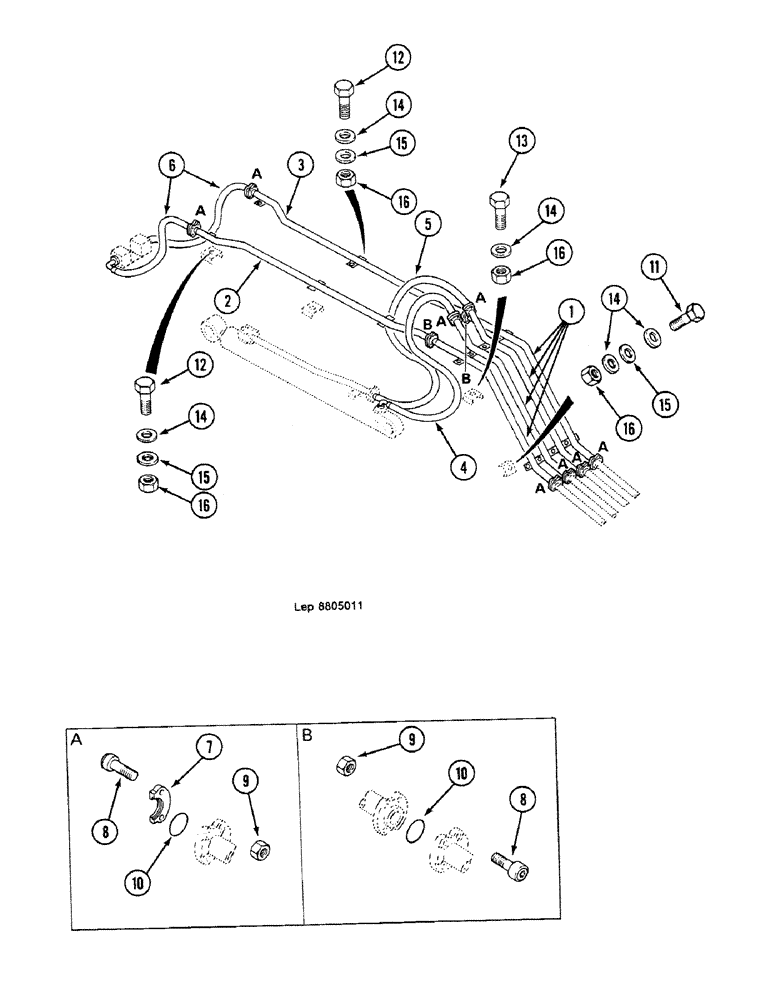

Схема запчастей Case 688C - (8G-018) - MOBILE SECTION HYDRAULIC CIRCUIT (REMOTE-CONTROLLED BOOM), (-XXXXX) (07) - HYDRAULIC SYSTEM
16
14
8
9
16
16
9
12
14
14
16
15
11
15
8
7
12
10
1
2
5
13
4
3
15
6
10
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

W3950178

PIPE ASSY.

1шт.

2

C7349146

PIPE

1шт.

3

B7349145

PIPE

1шт.

4

C5431935

HOSE,19mm ID x 800mm L

800mm

1шт.

5

Z5931952

HOSE,18.6mm ID x 1000mm L

1000mm

1шт.

6

V5431998

HOSE

1250mm

2шт.

7

C4024266

CLAMP

half

16шт.

8

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

40шт.

9

86500689

NUT,M10 x 1.5, Cl 10

40шт.

10

L1130483

O-RING

"3.53 x 24.99-80"

10шт.

11

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

12

J1133839

SCREW

M10 x 45 x 45

4шт.

13

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

14

W3528795

WASHER

"10.25 x 7 x 25"

10шт.

15

H1245227

WASHER

D10L

6шт.

16

G34598

SAFETY NUT

M10

8шт.
