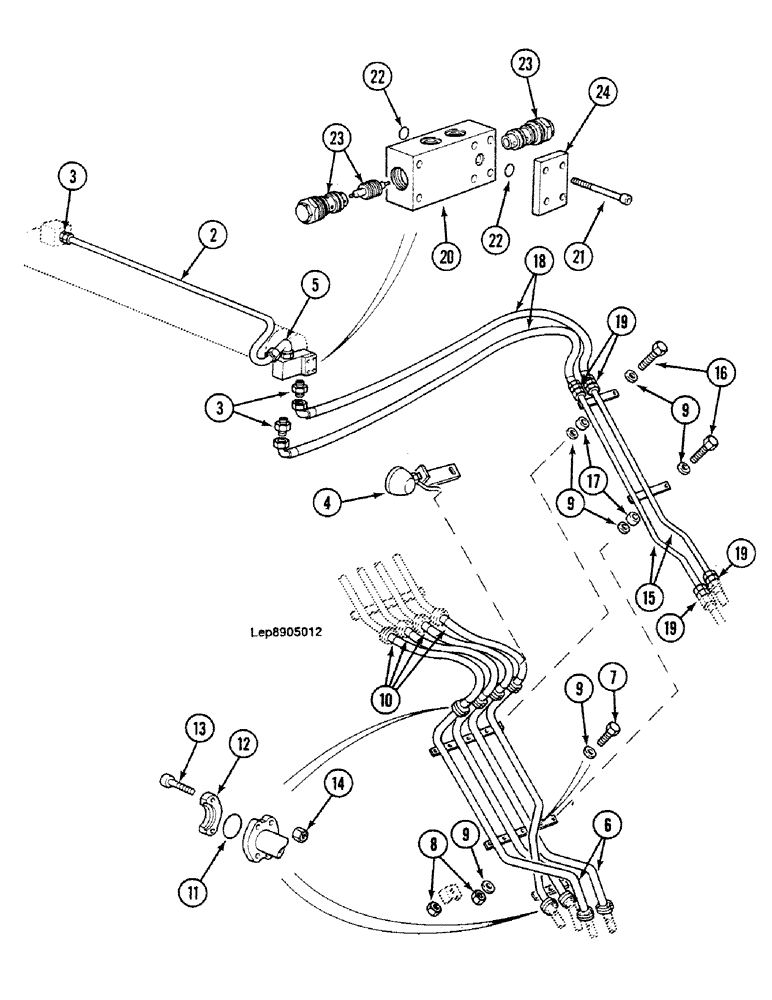

Запчасти Case 688C (8G-016) - FIXED SECTION HYDRAULIC CIRCUIT (REMOTE-CONTROLLED BOOM) (07) - HYDRAULIC SYSTEM

1

86500689

NUT,M10 x 1.5, Cl 10

1шт.

2

M7747653

PIPE

1шт.

3

H3237533

UNION

4шт.

G1145268

GASKET

"9.6 x 24.3 x 1.5"

1шт.

4

HEADLIGHT, See Figure : 4-62

1шт.

5

R1737021

ANGLE

PIECE

1шт.

6

V3950177

PIPE ASSY.

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

5шт.

8

G34598

SAFETY NUT

M10

7шт.

9

W3528795

WASHER

"10.25 x 7 x 25"

11шт.

10

C5931978

HOSE,19mm ID x 1250mm L

1250mm

4шт.

11

L1130483

O-RING

"3.53 x 24.99-80"

8шт.

12

C4024266

CLAMP

half

16шт.

13

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

32шт.

14

86500689

NUT,M10 x 1.5, Cl 10

32шт.

15

M4050104

PIPE ASSY.

1шт.

16

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

17

R4328730

WASHER

"10.25 x 20 x 25"

2шт.

18

T5931924

HOSE

500mm

2шт.

19

M3237537

UNION

4шт.

R3743311

SHIN

BRACKET Consist Of : 20-24

1шт.

20

BRACKET Order : R3743311

1шт.

21

J632922

SCREW

M8 x 70

4шт.

22

L1130483

O-RING

"3.53 x 24.99-80"

2шт.

23

Z3743318

CARTRIDGE

1шт.

W5449663

SEAL PACKAGE

1шт.

24

T4223323

LARGE PLATE

PLATE, LARGE

1шт.
