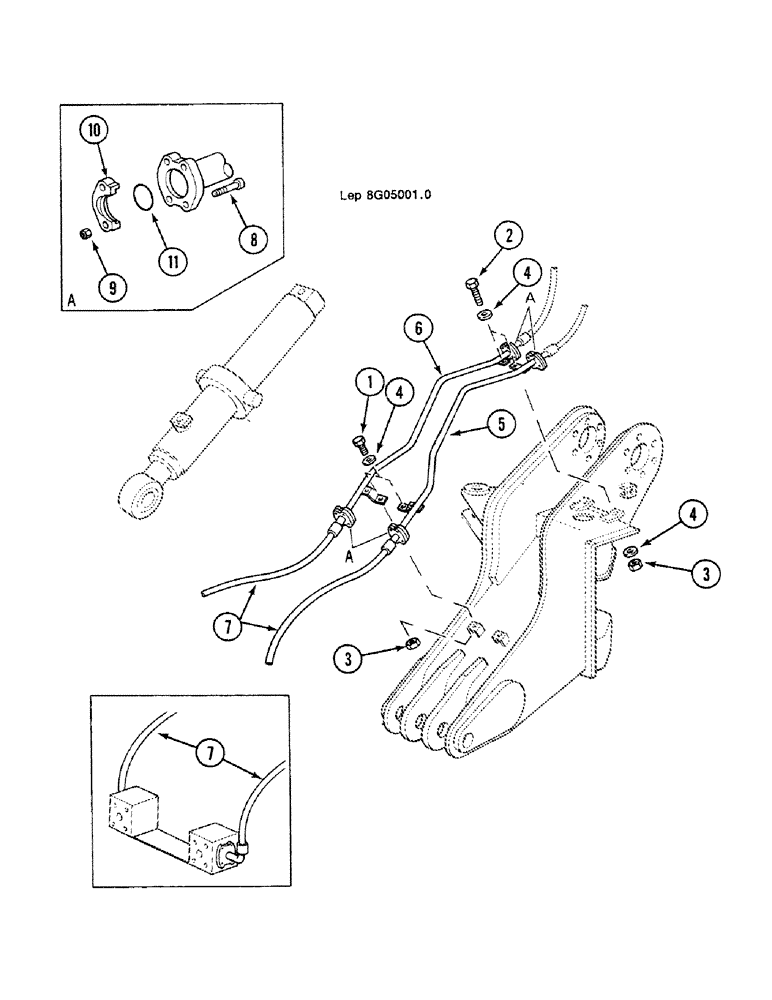

Запчасти Case 688C (8G-014) - MOBILE SECTION HYDRAULIC CIRCUIT (OFFSET BACKHOE BOOM) (07) - HYDRAULIC SYSTEM

1

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

2

J1133839

SCREW

M10 x 45 x 45

2шт.

3

G34598

SAFETY NUT

M10

4шт.

4

W3528795

WASHER

"10.25 x 7 x 25"

6шт.

5

B7349191

PIPE

1шт.

6

C7349192

PIPE

1шт.

7

V5431998

HOSE

1250mm, (-XXXXX)::

2шт.

7

HOSE, See Figure : 8G-50, (XXXXX-)::

1шт.

8

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

16шт.

9

86500689

NUT,M10 x 1.5, Cl 10

16шт.

10

C4024266

CLAMP

half

8шт.

11

L1130483

O-RING

"3.53 x 24.99-80"

4шт.
