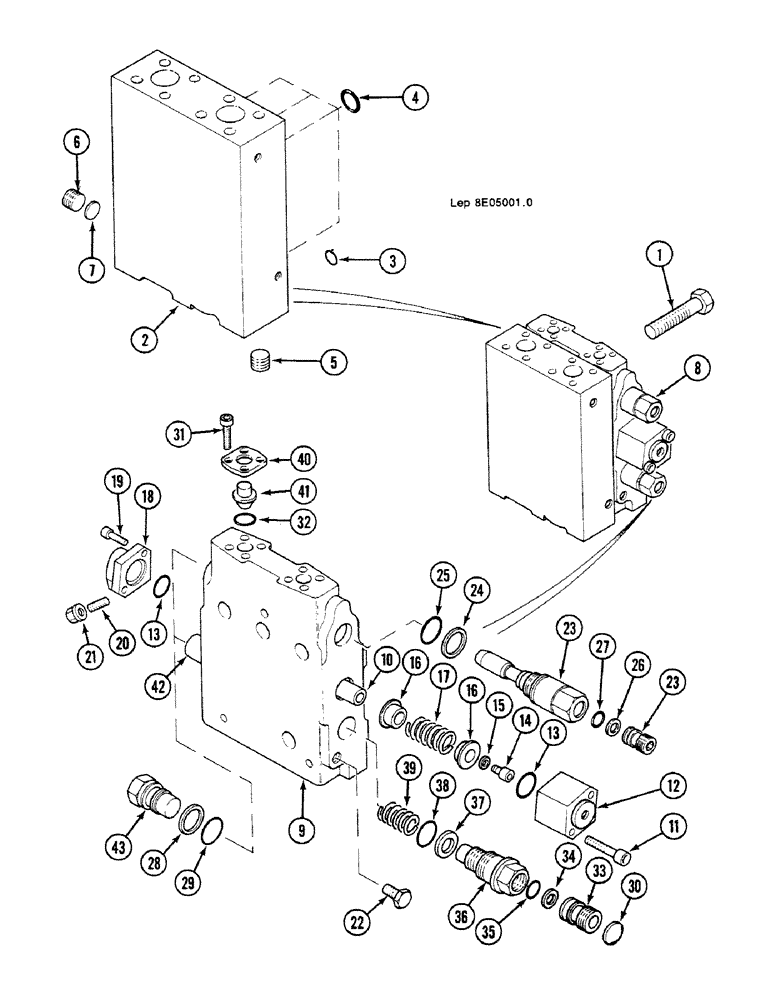

Запчасти Case 688C (8E-16) - CONTROL VALVE FOR HYDRAULIC HAMMER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
S1232977
SCREW
M16 x 90
3шт.
X3143638
LARGE PLATE
PLATE, LARGE Consist Of : 2-7
1шт.
2
PLATE Order : X3143638
1шт.
3
U2230466
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
"1.8 x 12.5"
1шт.
4
V2230467
O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro
"2.65 x 28"
4шт.
5
M3037414
PLUG
1шт.
6
E737453
PLUG
1шт.
7
R645050
HOLE PLUG BUTTON
1шт.
8
X3343692
DISTRIBUTOR
BLOCK selector Consist Of : 9-43
1шт.
9
BLOCK selector Order : X3343692
1шт.
10
VALVE spool Order : X3343692
1шт.
11
931527R1
HEX SOC SCREW,M8 x 65mm, Cl 10.9
2шт.
12
F2340462
CAP
1шт.
13
S2230464
O-RING
"2.65 x 38.7"
2шт.
14
K1432932
SCREW,Hex, M8 x 10, 10.9
2шт.
15
V1945382
WASHER
1шт.
16
S7646228
CUPEL
2шт.
17
A38295
SPRING
1шт.
18
N3240436
CAP
1шт.
19
Q732909
BOLT,Hex, M8 x 25, 8.8
2шт.
20
W3333042
STUD
1шт.
21
Q2434541
NUT
1шт.
22
C3037405
PLUG
1шт.
L3143696
SHOCK ABSORBER
Consist Of : 23-27
1шт.
23
ABSORBOR shock Order : L3143696
1шт.
24
N1245232
RING
BUSHING
1шт.
25
R2230463
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
"2.65 x 25-80"
1шт.
26
M1245231
BACK-UP RING
RING backup
1шт.
27
Q2230462
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
"2.65 x 14-80"
1шт.
28
N1245232
RING
BUSHING
2шт.
29
R2230463
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
"2.65 x 25-80"
2шт.
30
E2340461
BLANK-OFF PLUG
1шт.
31
14420331
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd
4шт.
32
L1130483
O-RING
"3.53 x 24.99-80"
1шт.
33
G3143669
SPARE PART SET
1шт.
34
M1245231
BACK-UP RING
1шт.
35
Q2230462
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
"2.65 x 14-80"
1шт.
36
D2340460
CAP
1шт.
37
N1245232
RING
BUSHING
1шт.
38
R2230463
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
"2.65 x 25-80"
1шт.
39
H1538155
SPRING
1шт.
40
R4024256
SHIN
BRACKET
1шт.
41
W5327832
BLANK-OFF PLUG
1шт.
42
VALVE spool Order : X3343692
1шт.
43
D3037406
PLUG
2шт.
Выбрано товаров: 45
