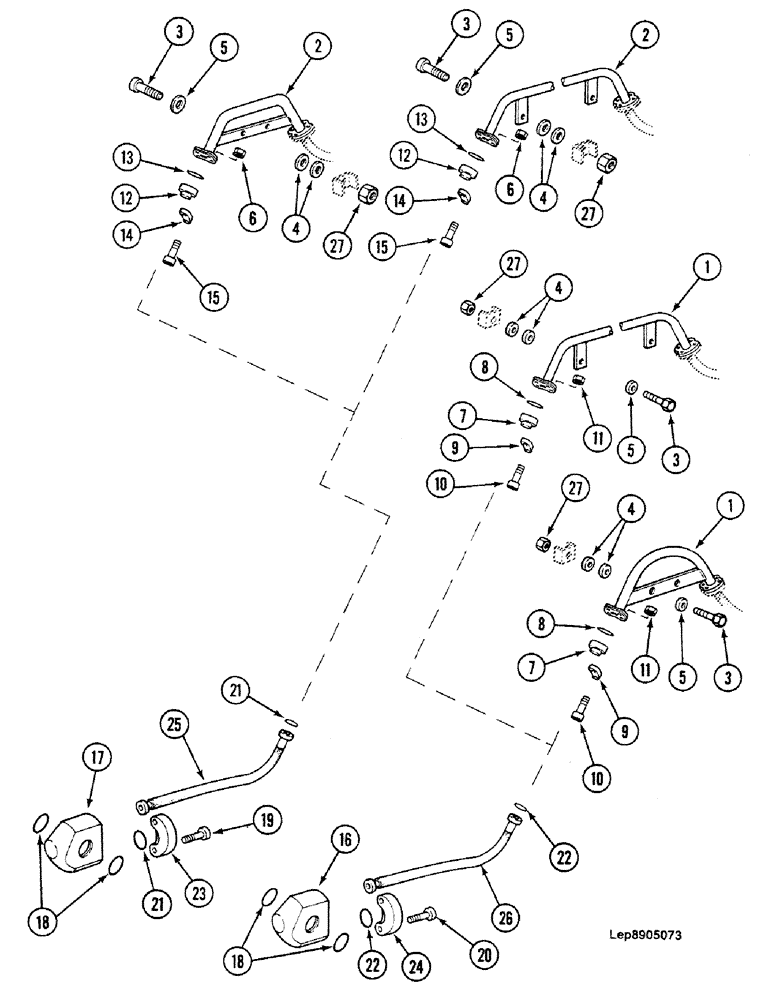

Запчасти Case 688C (8E-14) - HAMMER HYDRAULIC CIRC. ON DIPPERSTICK (1.50M-2.10M-2.65M) (07) - HYDRAULIC SYSTEM

1

S3550135

PIPE

On Arm : 1.50M

1шт.

1

T3550136

PIPE

On Arm : 2.10M

1шт.

1

K3550128

PIPE

On Arm : 2.65M

1шт.

2

V3550138

PIPE

On Arm : 1.50M

1шт.

2

U3550137

PIPE

On Arm : 2.10M

1шт.

2

L3550129

PIPE

On Arm : 2.65M

1шт.

3

J1133839

SCREW

M10 x 45 x 45

4шт.

4

W3528795

WASHER

"10.25 x 7 x 25"

8шт.

5

R35021

WASHER

L10

4шт.

6

86500689

NUT,M10 x 1.5, Cl 10

4шт.

7

K5327844

BLANK-OFF PLUG

1шт.

8

S1230493

O-RING,37.69mm ID x 3.53mm Width

"3.53 x 37.69-80"

1шт.

9

K4024273

RETAINER

CLAMP half

2шт.

10

N1232973

SCREW,Hex Soc Hd, M12 x 50, 10.9

4шт.

11

337475

NUT,M12, Cl 10

4шт.

12

W5327832

BLANK-OFF PLUG

1шт.

13

L1130483

O-RING

"3.53 x 24.99-80"

1шт.

14

C4024266

CLAMP

half

2шт.

15

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

4шт.

16

G5137723

FITTING

1шт.

17

H5137724

FITTING

1шт.

18

Z30336

O-RING

"5.33 x 62.87-80"

4шт.

19

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

20

Q1332910

SCREW

M12 x 35 10.9

4шт.

21

L1130483

O-RING

"3.53 x 24.99-80"

2шт.

22

S1230493

O-RING,37.69mm ID x 3.53mm Width

"3.53 x 37.69-80"

2шт.

23

C4024266

CLAMP

half

2шт.

24

K4024273

RETAINER

CLAMP half

2шт.

25

X6531929

HOSE

1600mm

1шт.

26

K6531940

HOSE

1600mm

1шт.

27

G34598

SAFETY NUT

M10

4шт.
