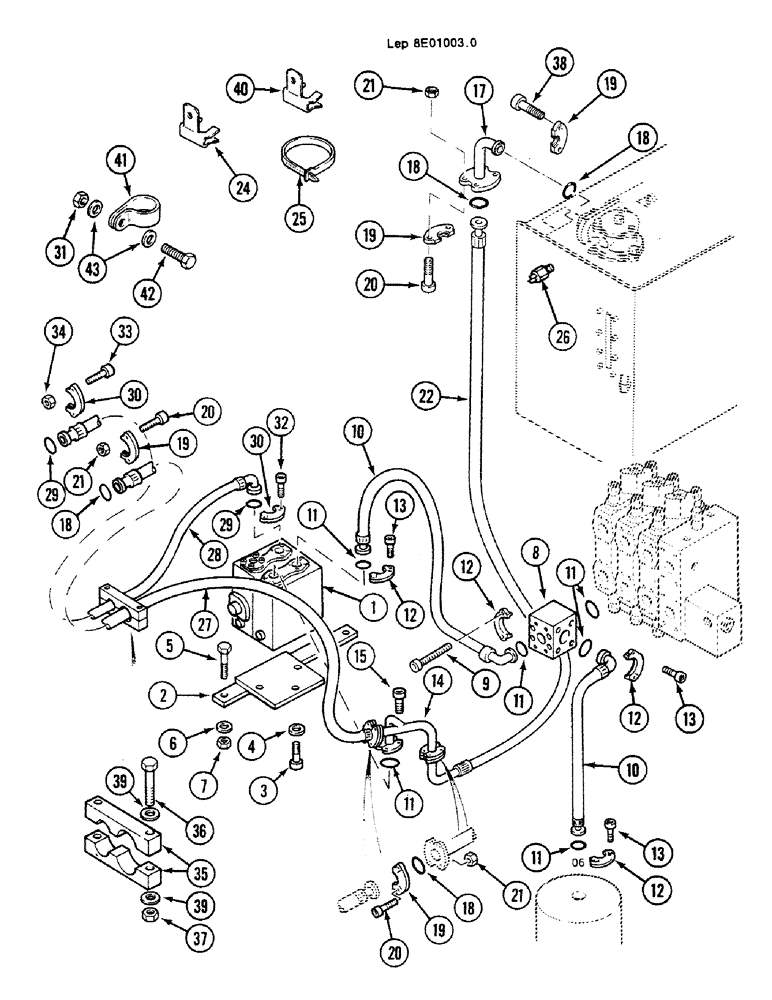

Запчасти Case 688C (8E-06) - HYDRAULIC HAMMER CIRCUIT, (XXXXX-) (07) - HYDRAULIC SYSTEM

1

VALVE, See Page : 8E-17

1шт.

2

K4427118

SUPPORT

1шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

4

U3528793

WASHER

"12.5 x 8 x 30"

3шт.

5

P133804

BOLT,Hex, M20 x 85

2шт.

6

X3528796

WASHER

21 x 14 x 45

2шт.

7

Q134564

SAFETY NUT

M20

2шт.

8

A1237216

TEE

PIECE

1шт.

9

G732993

SCREW

M12 x 120

4шт.

10

T6731910

HOSE

1000mm

2шт.

11

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"3.53 x 32.92-80"

6шт.

12

D4024267

SHIN

CLAMP half

8шт.

13

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

12шт.

14

X3750194

MANIFOLD

COLLECTOR

1шт.

15

14420221

HEX SOC SCREW,M10 x 30mm, Cl 8.8

4шт.

17

V7447189

PIPE

1шт.

18

S1230493

O-RING,37.69mm ID x 3.53mm Width

"3.53 x 37.69-80"

5шт.

19

K4024273

RETAINER

CLAMP half

10шт.

20

N1232973

SCREW,Hex Soc Hd, M12 x 50, 10.9

16шт.

21

337475

NUT,M12, Cl 10

16шт.

22

U7631901

HOSE

2800mm

1шт.

24

Z2036902

CLASP

3-7

1шт.

25

D136922

BLISTER

COLLAR 351mm

1шт.

26

H1241892

ELECTRO/HYD CONTACT

1шт.

27

K6531940

HOSE

1600mm

1шт.

28

W5431999

HOSE

1600mm

1шт.

29

L1130483

O-RING

"3.53 x 24.99-80"

2шт.

30

C4024266

CLAMP

half

4шт.

31

F234513

SAFETY NUT

M6

2шт.

32

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

33

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

4шт.

34

100016

NUT,M10 x 1.5, Cl 8

4шт.

35

G5120335

SHIN

BRACKET

2шт.

36

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

37

G34598

SAFETY NUT

M10

2шт.

38

87016466

HEX SOC SCREW,M12 x 25mm, Cl 8.8, Full Thd

4шт.

39

W3528795

WASHER

"10.25 x 7 x 25"

4шт.

40

R1436963

CLASP

14-20

1шт.

41

F1736988

CLAMP

COLLAR 44-51

2шт.

42

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

43

B3528799

WASHER

"6.25 x 4 x 15"

4шт.
