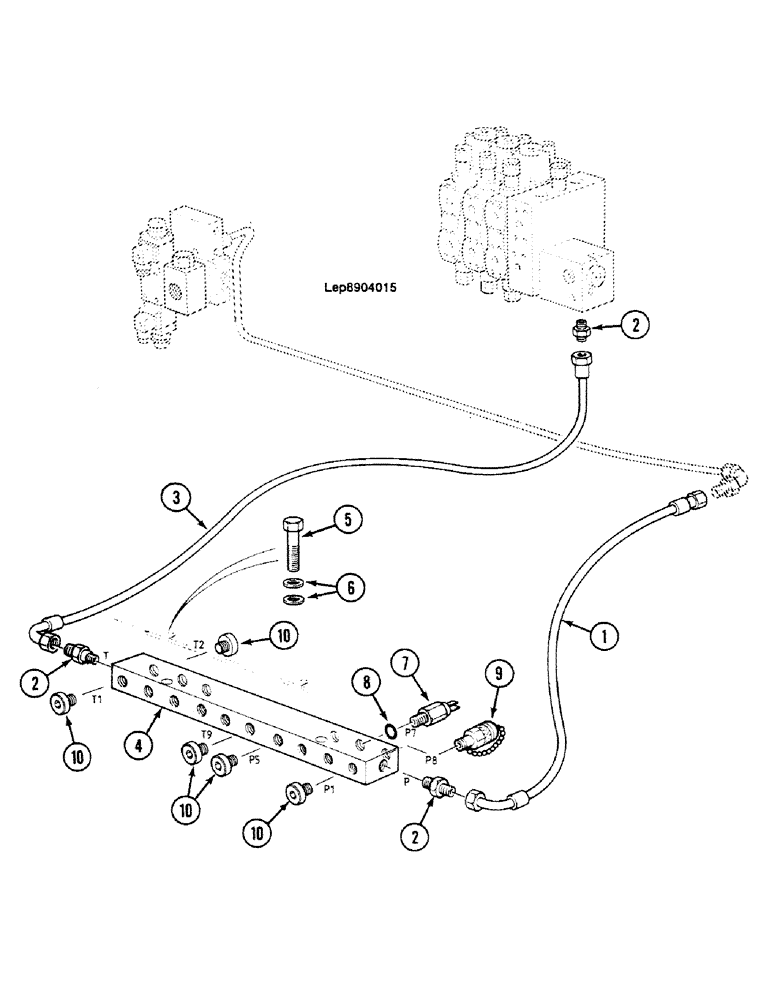

Запчасти Case 688C (8D-02) - CAB HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

C5431958

HOSE

900mm

1шт.

2

G3237532

UNION

3шт.

S2230418

GASKET

"15.7 x 20.9 x 1.5"

1шт.

3

D5431959

HOSE

1250mm

1шт.

4

F3837785

BLOCK ASSY.

1шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

6

B3528799

WASHER

"6.25 x 4 x 15"

4шт.

7

M1241850

ELECTRO/HYD CONTACT

1шт.

8

M45298

WASHER, SEALING

SEAL WASHER "12.2 x 17 x 1.5"

1шт.

9

A3237549

HYD CONNECTOR

COUPLING minimess

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.

10

U2537447

PLUG

5шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.
