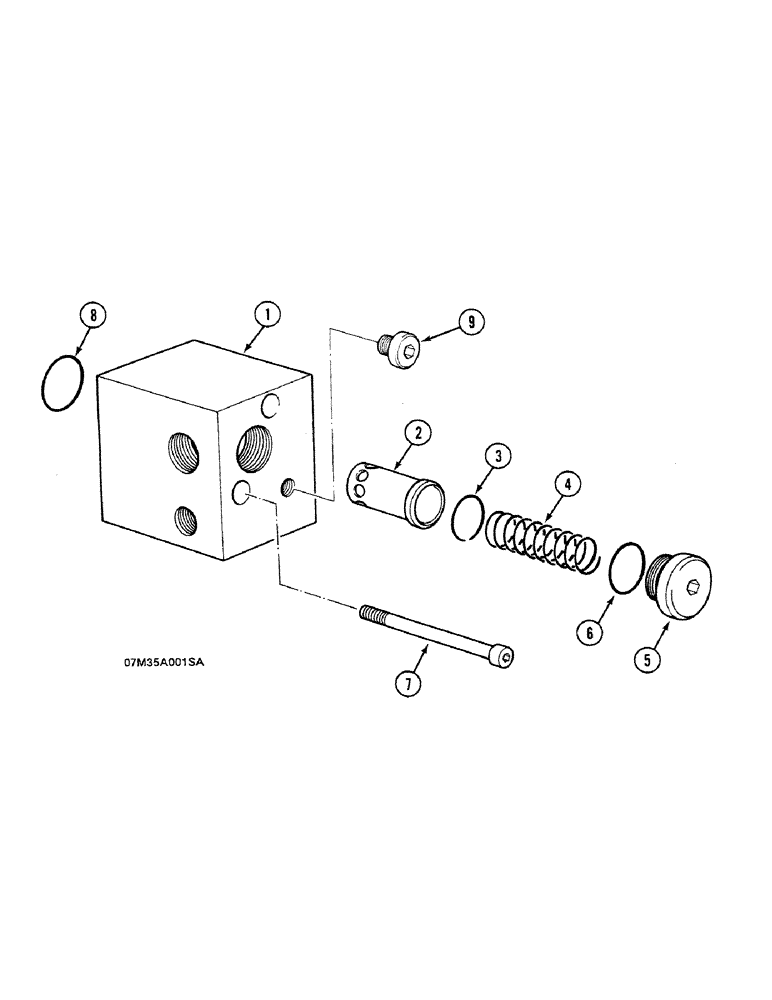

Запчасти Case 688C (8C-34) - FORCED FEED VALVE, (-XXXXX) (07) - HYDRAULIC SYSTEM

H2643374

BLOCK ASSY.

BRACKET Consist Of : 1-9, Order : P4943334

1шт.

1

BLOCK Order : P4943334

1шт.

2

Z4043330

VALVE POPPET

1шт.

3

R936345

SPECIAL RING

1шт.

4

R1038235

SPRING

1шт.

5

D3237460

PLUG

1шт.

6

N630442

O-RING

"3.53 x 28.17-80"

1шт.

7

N732976

SCREW

M10 x 100

2шт.

8

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"3.53 x 32.92-80"

1шт.

9

U2537447

PLUG

1шт.

R7046042

GASKET

"11.5 x 16.5 x 1.5"

1шт.
