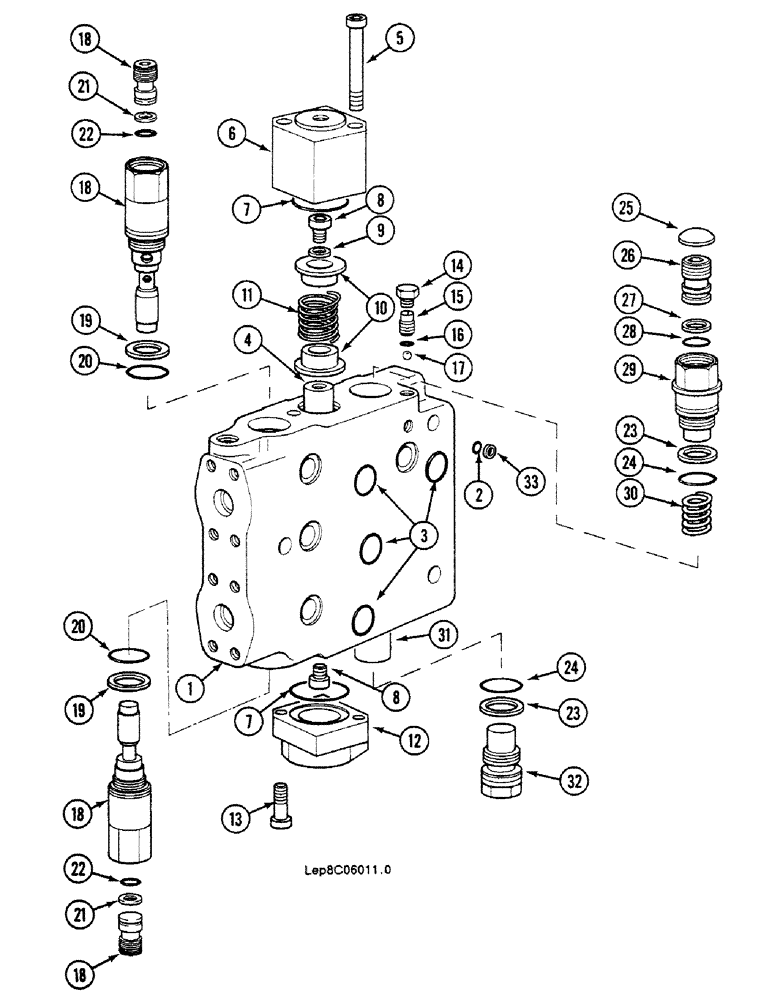

Запчасти Case 688C (8C-30) - CONTROL VALVE FOR ATTACHMENT (07) - HYDRAULIC SYSTEM

P3343684

DISTRIBUTOR

BLOCK selector Control valve for boom, Consist Of : 1-33

1шт.

Q3343685

DISTRIBUTOR

BLOCK selector Control valve for tool, Consist Of : 1-33

1шт.

N3343683

DISTRIBUTOR

BLOCK selector Control valve for arm, Consist Of : 1, 4-14, 18-32

1шт.

1

BLOCK selector Order the adapted selector valve assembly

1шт.

2

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"1.8 x 12.5"

1шт.

3

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"2.65 x 28"

4шт.

4

VALVE spool/drawer Order the adapted selector valve assembly

1шт.

5

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

6

F2340462

CAP

1шт.

7

S2230464

O-RING

"2.65 x 38.7"

2шт.

8

K1432932

SCREW,Hex, M8 x 10, 10.9

2шт.

9

V1945382

WASHER

1шт.

10

S7646228

CUPEL

2шт.

11

A38295

SPRING

1шт.

12

G2340463

CAP

1шт.

13

Q732909

BOLT,Hex, M8 x 25, 8.8

2шт.

14

C3037405

PLUG

1шт.

15

P729780

SEAT

1шт.

16

T2930401

O-RING

1шт.

17

X31002

BALL

1шт.

18

P3143676

VALVE, PRESSURE RELI

EF ABSORBER shock Consist Of : 19-22

2шт.

19

N1245232

RING

BUSHING

2шт.

20

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

2шт.

21

M1245231

BACK-UP RING

RING backup

1шт.

22

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"2.65 x 14-80"

1шт.

23

N1245232

RING

BUSHING

2шт.

24

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

2шт.

25

E2340461

BLANK-OFF PLUG

1шт.

26

G3143669

SPARE PART SET

1шт.

27

M1245231

BACK-UP RING

1шт.

28

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"2.65 x 14-80"

1шт.

29

D2340460

CAP

1шт.

30

H1538155

SPRING

1шт.

31

VALVE spool/drawer Order the adapted selector valve assembly

1шт.

32

D3037406

PLUG

1шт.

33

D3628828

BACK-UP RING

1шт.
