Запчасти Case 688C (8C-28) - ATTACHMENT CONTROL VALVE, (10787-) (07) - HYDRAULIC SYSTEM

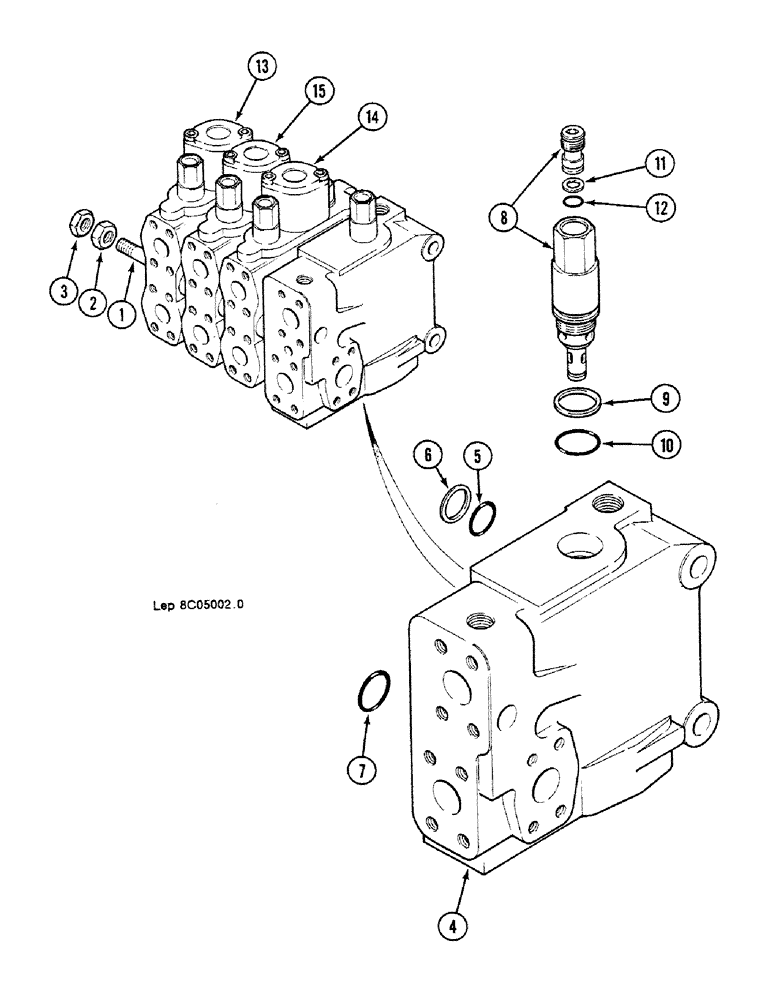

Схема запчастей Case 688C - (8C-28) - ATTACHMENT CONTROL VALVE, (10787-) (07) - HYDRAULIC SYSTEM
6
14
3
12
11
9
10
15
2
5
1
4
7
13
8

Артикул

Название

Примечание

Количество

1

R2527738

STEM

3шт.

2

Q34169

NUT

M16

3шт.

3

U34564

NUT

M16

3шт.

B3843623

LARGE PLATE

PLATE, LARGE Consist Of : 4-12

1шт.

4

PLATE Order : B3843623

1шт.

5

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"1.8 x 12.5"

1шт.

6

D3628828

BACK-UP RING

1шт.

7

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"2.65 x 28"

4шт.

H3143647

LIMITER, TRAVEL

LIMITER Consist Of : 8-12

1шт.

8

LIMITER Order : H3143647

1шт.

9

N1245232

RING

BUSHING

1шт.

10

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

1шт.

11

M1245231

BACK-UP RING

RING backup

1шт.

12

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"2.65 x 14-80"

1шт.

13

BLOCK selector, See Figure : 8C-30

1шт.

14

BLOCK selector, See Figure : 8C-30

1шт.

15

BLOCK selector, See Figure : 8C-30

1шт.

Выбрано товаров: 17
