(8C-26) - ATTACHMENT CONTROL VALVE, (-10786)

Запчасти Case 688C (8C-26) - ATTACHMENT CONTROL VALVE, (-10786) (07) - HYDRAULIC SYSTEM

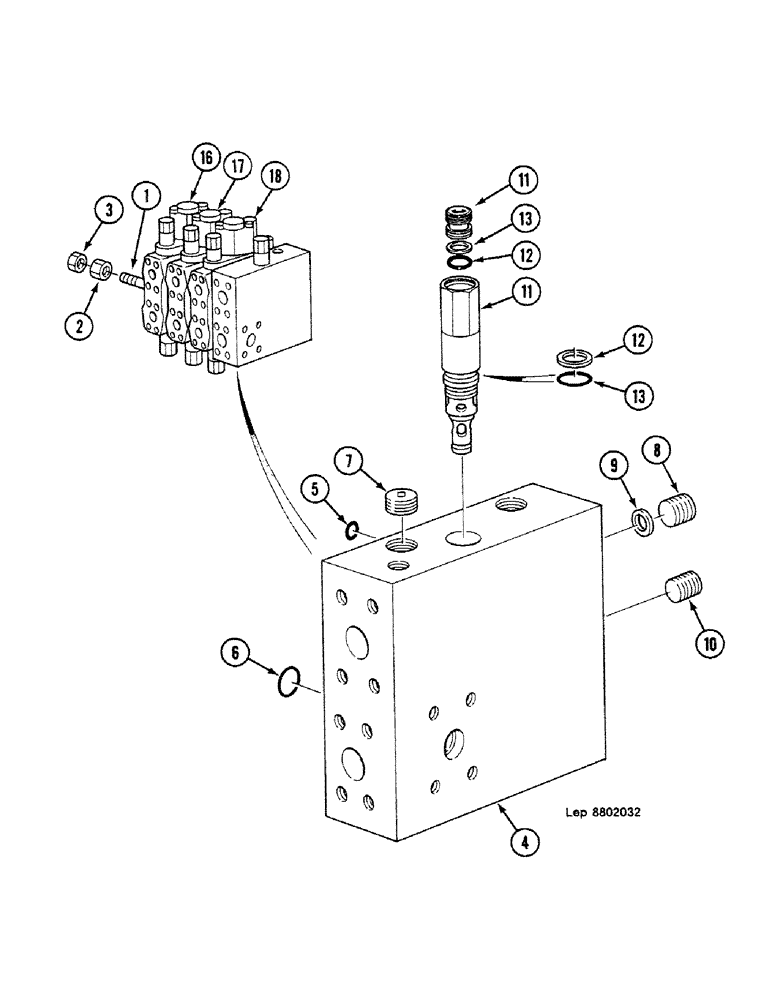

Схема запчастей Case 688C - (8C-26) - ATTACHMENT CONTROL VALVE, (-10786) (07) - HYDRAULIC SYSTEM
7
6
11
8
2
17
18
5
10
9
13
11
4
13
12
3
16
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R2527738

STEM

3шт.

2

Q34169

NUT

M16

3шт.

3

U34564

NUT

M16

3шт.

4

C3143619

LARGE PLATE

PLATE, LARGE Consist Of : 5-15, Order : B3843623 (1) / A2537419 (1)

1шт.

5

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"1.8 x 12.5"

1шт.

6

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"2.65 x 28"

4шт.

7

M3037414

PLUG

1шт.

8

E737453

PLUG

1шт.

9

R645050

HOLE PLUG BUTTON

SEAL

1шт.

10

H1337411

PLUG

2шт.

11

H3143647

LIMITER, TRAVEL

LIMITER Consist Of : 12-15

1шт.

12

N1245232

RING

BUSHING

1шт.

13

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"2.65 x 25-80"

1шт.

14

M1245231

BACK-UP RING

RING backup

1шт.

15

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"2.65 x 14-80"

1шт.

16

BLOCK selector, See Figure : 8C-30

1шт.

17

BLOCK selector, See Figure : 8C-30

1шт.

18

BLOCK selector, See Figure : 8C-30

1шт.
