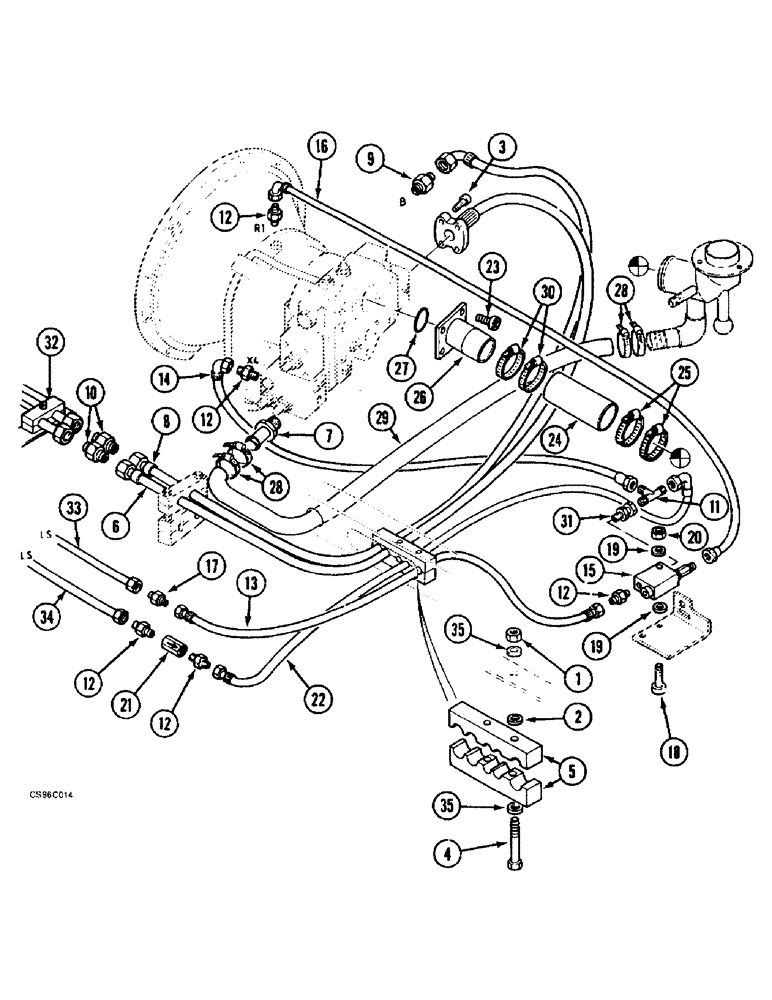

Запчасти Case 688BCK (8B-06) - CIRCUIT - ENGINE MODULE, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

1

G34598

SAFETY NUT

M10

2шт.

2

W3528795

WASHER

10.25 x 7 x 25

2шт.

3

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

M6 x 25

4шт.

4

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

5

N5120387

SHIN

FIXING BRACKET

2шт.

6

G7631935

HOSE

1450MM

1шт.

V1130446

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3.53 x 18.64

1шт.

7

K5037584

FITTING

1шт.

T945294

GASKET

29.7 x 35.7 x 2

1шт.

8

N5431968

HOSE

1600MM

1шт.

9

H3237533

UNION

1шт.

G1145268

GASKET

19.6 x 24.3 x 1.5

1шт.

10

M3237537

UNION

2шт.

11

H2643351

BLOCK ASSY.

1шт.

12

E3237530

UNION

5шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

13

U7931913

HOSE

800MM

1шт.

14

T7931912

HOSE

1000MM

1шт.

15

REF

INSTRUCTION

SELECTOR SEE FIGURE: 8B-24

1шт.

16

F5431984

HOSE

1000MM

1шт.

17

J3237534

UNION

1шт.

18

H132970

BOLT,Hex, M8 x 60

2шт.

19

V3528794

WASHER

8.25 x 6 x 20

4шт.

20

A134596

SAFETY NUT

M8

2шт.

21

REF

INSTRUCTION

FILTER SEE FIGURE: 8B-22

1шт.

22

Q7931909

HOSE

1250MM

1шт.

23

87016466

HEX SOC SCREW,M12 x 25mm, Cl 8.8, Full Thd

4шт.

24

N8131961

LARGE HOSE

HOSE,LARGE 325MM

1шт.

25

K1236903

CLAMP

COLLAR 80-100MM

2шт.

26

A4250170

MANIFOLD

1шт.

27

N930454

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

3.53 x 72.62

1шт.

28

L36902

COLLAR CLAMP

32-50MM

4шт.

29

M1103666

HOSE

82935 ORDER LENGTH: 900MM

1шт.

30

J36946

COLLAR CLAMP

2шт.

31

F3237554

FITTING

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

32

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-6

1шт.

33

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-4

1шт.

34

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-6

1шт.

35

W35003

WASHER

M10 N

4шт.
