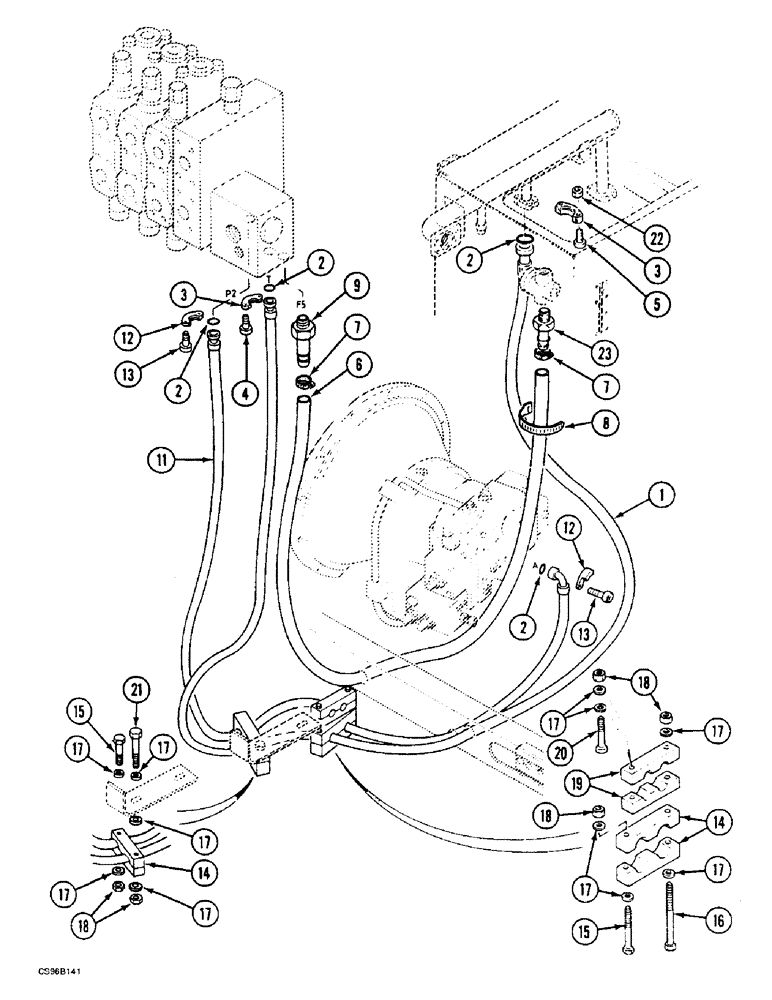

Запчасти Case 688BCK (8B-04) - CIRCUIT - ENGINE MODULE, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

1

K8031931

PIPE

2240MM

1шт.

2

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3.53 x 32.92

4шт.

3

J4024272

BRACKET

HALF CLAMP

4шт.

4

14420221

HEX SOC SCREW,M10 x 30mm, Cl 8.8

4шт.

5

864-10045

HEX SOC SCREW,M10 x 45mm, Cl 8.8

4шт.

6

D1103635

PIPE

82935 ORDER LENGTH: 1600MM

1шт.

7

Q36998

COLLAR CLAMP

25-40MM

2шт.

8

N51946

CLAMP

COLLAR 258MM

1шт.

9

B4837545

FITTING

1шт.

V5746063

GASKET

23.9 x 29.2 x 1.5

1шт.

11

K5931916

HOSE,25mm ID x 1800mm L

1800MM

1шт.

12

D4024267

SHIN

HALF CLAMP

4шт.

13

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

14

M5220344

SHIN

FIXING BRACKET, REPLACE: C5120331

4шт.

15

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

16

E1133858

SCREW

M10 x 140

1шт.

17

W35003

WASHER

M10 N

11шт.

18

G34598

SAFETY NUT

M10

5шт.

19

M5120340

SHIN

FIXING BRACKET

2шт.

20

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

21

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

22

100016

NUT,M10 x 1.5, Cl 8

4шт.

23

N5037587

FITTING

1шт.

T945294

GASKET

29.7 x 35.7 x 2

1шт.
