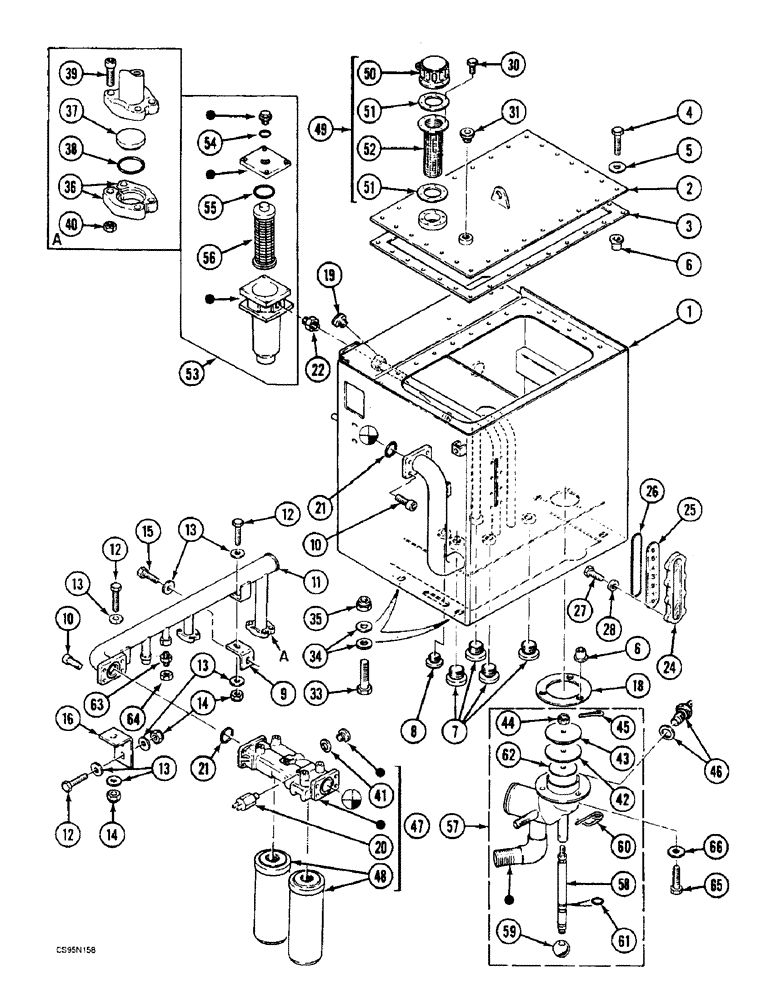

Запчасти Case 688BCK (8A-6) - HYDRAULIC RESERVOIR, 688B CK (120509-) (07) - HYDRAULIC SYSTEM

1

J2440262

TANK, HYDRAULIC OIL

RESERVOIR

1шт.

2

E7928265

COVER ASSY

1шт.

3

A9646062

GASKET

1шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

28шт.

5

W35003

WASHER

M10 N

28шт.

6

B35490

RIVET

31шт.

7

A2537429

PLUG

M27 x 2.0MM

4шт.

V5746063

GASKET

23.9 x 29.2 x 1.5

1шт.

8

H2537413

PLUG

M22 x 1.5MM

1шт.

G1145268

GASKET

19.6 x 24.3 x 1.5

1шт.

9

W5625682

LARGE PLATE

PLATE, LARGE

1шт.

10

L1232971

SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9

8шт.

11

V4350170

MANIFOLD

1шт.

12

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

13

V3528794

WASHER

8.25 x 6 x 20

9шт.

14

A134596

SAFETY NUT

M8

4шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

16

Z5725642

LARGE PLATE

PLATE, LARGE

1шт.

18

P9646052

SEAL

1шт.

19

U2537447

PLUG

M14 x 1.5MM

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

20

L2341870

CONNECTION,ELECTRIC

PROBE, 42026 FILTER OBSTRUCTION

1шт.

21

B30453

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.53 x 56.74

2шт.

22

J4237597

UNION

1шт.

T945294

GASKET

29.7 x 35.7 x 2

1шт.

24

X423428

BODY

1шт.

25

Q22485

SIGHTGLASS

WARNING LIGHT

1шт.

26

J130487

O-RING,131 mm ID

5 x 131

1шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

28

W28425

GASKET

8шт.

30

J433811

SCREW

M4 x 10

6шт.

31

J3337446

PLUG

1шт.

G1145268

GASKET

19.6 x 24.3 x 1.5

1шт.

33

374890

BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd

4шт.

34

H5428789

WASHER

21 x 7 x 35

8шт.

35

Q134564

SAFETY NUT

M20

4шт.

36

K4024273

RETAINER

HALF CLAMP

2шт.

37

K5327844

BLANK-OFF PLUG

PN250DN32

1шт.

38

S1230493

O-RING,37.69mm ID x 3.53mm Width

3.53 x 37.69

4шт.

39

N1232973

SCREW,Hex Soc Hd, M12 x 50, 10.9

4шт.

40

337475

NUT,M12, Cl 10

4шт.

41

B1230455

O-RING

3 x 37.46

1шт.

42

G8846013

GASKET

1шт.

43

P1846384

WASHER

1шт.

44

L34303

NUT

HK 8D

1шт.

45

X35510

SPLIT PIN

1шт.

46

REF

INSTRUCTION

PROBE SEE FIGURE: 4-14

1шт.

47

E2950559

HYDRAULIC OIL FILTER

1шт.

48

J2950563

CARTRIDGE

2шт.

49

A2950555

FILTER

1шт.

50

C2950557

FILTER

1шт.

51

R9646054

GASKET

2шт.

52

B2950556

FILTER

1шт.

53

P2950568

FILTER, ENGINE OIL

FILTER, OIL

1шт.

54

J3330431

O-RING

2.5 x 18

1шт.

55

T3330463

O-RING

3 x 59

1шт.

56

Q2950569

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

57

H837874

VANEUM GAUGE

1шт.

58

D2127986

STEM

1шт.

59

G152059

BUTTON

1шт.

60

L36005

SPLIT PIN/SAFETY PIN

1шт.

61

C1930415

O-RING

2.62 x 9.93

1шт.

62

U2745413

WASHER

1шт.

63

L3237536

UNION

1шт.

64

C2537408

BLANK-OFF PLUG

M20 x 1.5MM

1шт.

65

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

66

W3528795

WASHER

10.25 x 7 x 25

3шт.
