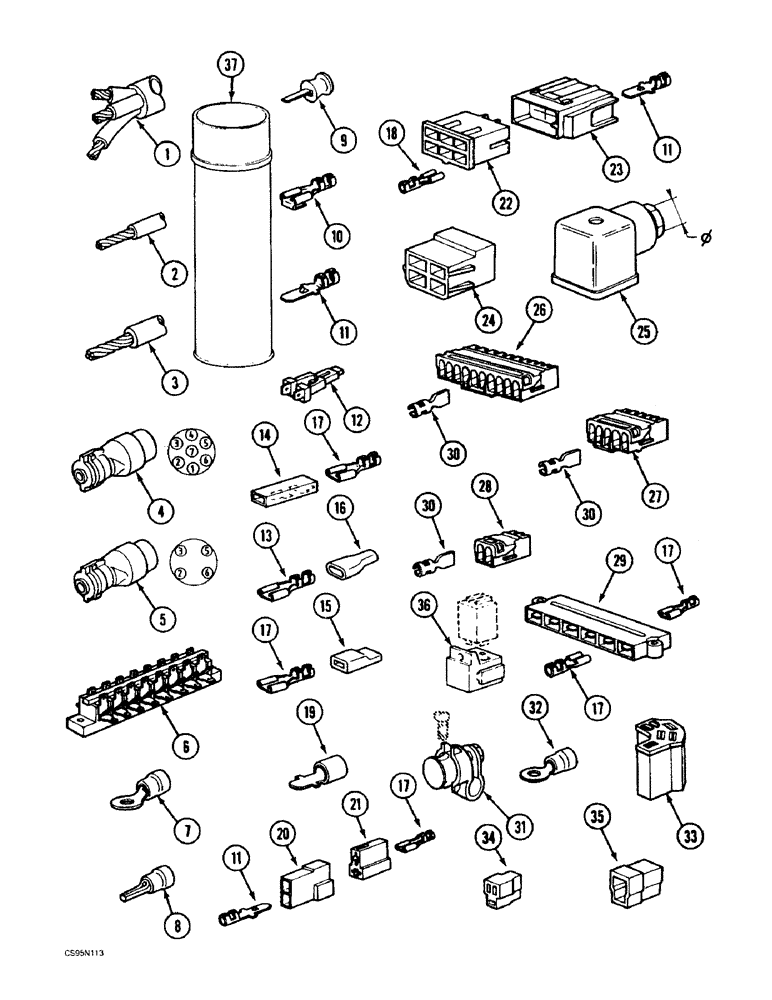

Запчасти Case 688BCK (4-50) - ELECTRICAL ACCESSORIES, 688B CK (120301-) (06) - ELECTRICAL SYSTEMS

1

V104508

CABLE

1 x 1.5MM

1шт.

1

M4565

CABLE

2 x 1.5MM

1шт.

1

G104518

CABLE

2 x 6MM

1шт.

1

S104597

CABLE

3 x 1.5MM

1шт.

1

U104599

CABLE

4 x 1.5MM

1шт.

1

P104525

CABLE

5 x 1.5MM

1шт.

2

U31252

ELECTRICAL WIRE

WIRE 0.75MM2

1шт.

2

V31253

ELECTRICAL WIRE

WIRE 1.50MM2

1шт.

2

W31254

ELECTRICAL WIRE

WIRE 2.50MM2

1шт.

3

J104520

CABLE

1шт.

4

P40746

CONNECTOR,ELECTRIC

1шт.

5

J40741

CONNECTOR,ELECTRIC

1шт.

6

NLS

NO LONGER SERVICED

1шт.

7

J40925

TERMINAL CONNECTOR

DIA. 4

1шт.

7

K40926

TERMINAL CONNECTOR

DIA. 5

1шт.

7

NLS

NO LONGER SERVICED

DIA. 6

1шт.

7

P40953

TERMINAL CONNECTOR

DIA. 8

1шт.

8

U40935

END FITTING

1шт.

9

G640901

END FITTING

1шт.

10

V40982

CLIP,ELECTRICAL

1шт.

11

X40938

CONNECTION

TAB

1шт.

12

A640964

FITTING

ORDER: 3178377R1

1шт.

13

G2036955

CLIP,ELECTRICAL

1шт.

14

B40941

CONNECTION,ELECTRIC

1шт.

15

Q1540485

ELECTRIC INSULATION

ISOLATOR

1шт.

16

C41471

ELECTRIC INSULATION

ISOLATOR

1шт.

17

P40940

TERMINAL

1шт.

18

E640945

CLIP,ELECTRICAL

1шт.

19

Z640963

CONNECTION

TAB

1шт.

20

U740848

ELEC CONNECTOR

1шт.

21

M440714

ELEC CONNECTOR

1шт.

22

R840757

ELEC CONNECTOR

CONNECTOR

1шт.

23

Q740844

ELEC CONNECTOR

1шт.

24

E740857

ELEC CONNECTOR

1шт.

25

J340730

MAKING-UP

SOCKET DIA. 9

1шт.

25

S1340709

MAKING-UP

SOCKET DIA. 11

1шт.

L9646095

GASKET

1шт.

26

X740851

ELEC CONNECTOR

10 JUNCTIONS

1шт.

26

Z740852

ELEC CONNECTOR

8 JUNCTIONS

1шт.

26

G740859

ELEC CONNECTOR

7 JUNCTIONS

1шт.

27

B740854

ELEC CONNECTOR

5 JUNCTIONS

1шт.

27

A740853

ELEC CONNECTOR

6 JUNCTIONS

1шт.

28

F740858

ELEC CONNECTOR

2 JUNCTIONS

1шт.

28

C740855

ELEC CONNECTOR

3 JUNCTIONS

1шт.

29

D740856

SLIDER

1шт.

30

V640960

CLIP,ELECTRICAL

CLIP

1шт.

31

C40919

TERMINAL CONNECTOR

CLAMP+

1шт.

31

C40919

TERMINAL CONNECTOR

CLAMP-

1шт.

32

T40934

TERMINAL CONNECTOR

1шт.

33

T1340710

ELEC CONNECTOR

CONNECTOR 6 JUNCT

1шт.

34

R1340708

ELEC CONNECTOR

CONNECTOR 3 JUNCT

1шт.

35

B840766

CASE

CONNECTOR 3 JUNCT

1шт.

36

A40710

KIT

1шт.

37

M1703414

PROTECTOR

FLUID, CLEANING AND DEOXIDIZATION OF ELECTRICAL CONTACT POINTS

1шт.
