(4-04) - ELECTRICAL CIRCUIT - OPERATORS COMPARTMENT, 688B CK (120301-

Запчасти Case 688BCK (4-04) - ELECTRICAL CIRCUIT - OPERATORS COMPARTMENT, 688B CK (120301- (06) - ELECTRICAL SYSTEMS

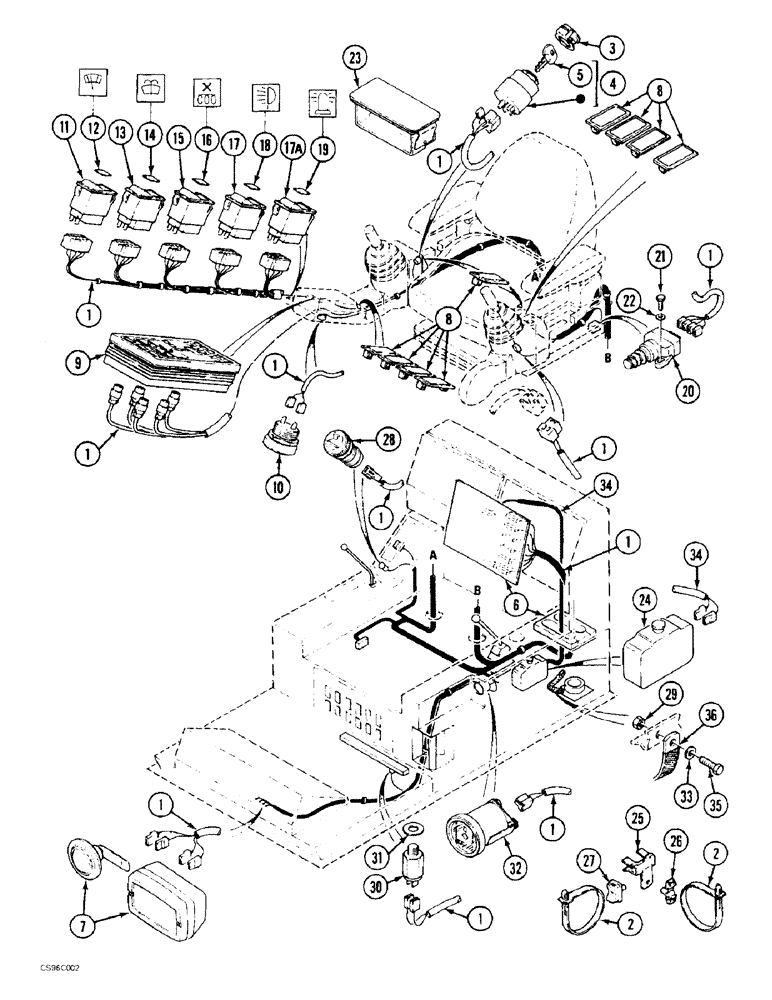

Схема запчастей Case 688BCK - (4-04) - ELECTRICAL CIRCUIT - OPERATORS COMPARTMENT, 688B CK (120301- (06) - ELECTRICAL SYSTEMS
1
23
2
24
1
10
27
12
1
1
31
1
18
29
2
6
1
32
4
1
1
25
17
8
14
26
34
33
17a
1
19
15
16
20
36
21
28
1
34
7
8
35
9
13
5
30
11
3
22
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T2052238

HARNESS

1шт.

2

N51946

CLAMP

COLLAR 258MM

1шт.

3

V2340476

CAP

PROTECTOR

1шт.

4

D2141257

SWITCH

TWO-WAY

1шт.

5

G1652004

SET OF 2 KEYS

1шт.

6

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 4-6

1шт.

7

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 4-20

1шт.

8

W3240444

BLANK-OFF PLUG

COVER

10шт.

9

REF

INSTRUCTION

PANEL, INSTRUMENT SEE FIGURE: 4-22

1шт.

10

L341307

BUZZER

42031 REPLACE: R1941882

1шт.

11

M2141242

SWITCH

REVERSER

1шт.

12

J2551513

SYMBOLS

SYMBOL IDEOGRAM

1шт.

13

N2141243

SWITCH

TWO-WAY

1шт.

14

K2551514

SYMBOLS

SYMBOL IDEOGRAM

1шт.

15

P2141244

SWITCH

TWO-WAY

1шт.

16

L2551515

SYMBOLS

SYMBOL IDEOGRAM

1шт.

17

R2141246

SWITCH

TWO-WAY

1шт.

17a

R2141246

SWITCH

TWO-WAY

1шт.

18

M2551516

SYMBOLS

SYMBOL IDEOGRAM

1шт.

19

N2551517

SYMBOLS

SYMBOL IDEOGRAM

1шт.

20

C1941892

SWITCH

DETECTOR

1шт.

21

NLS

NO LONGER SERVICED

2шт.

22

C4328717

WASHER

4.25 x 3 x 10

2шт.

23

V8028284

CASE

1шт.

24

H2341890

RESERVOIR

44020 REPLACE: U1241880

1шт.

25

Z2036902

CLASP

THONG 3-7MM

1шт.

26

P2036939

CLASP

THONG

1шт.

27

G3036926

BASE

1шт.

28

V3743292

LIGHTER, CIGARETTE

1шт.

29

Z1634563

SAFETY NUT

M10

1шт.

30

M1241850

ELECTRO/HYD CONTACT

SWITCH

1шт.

31

M45298

WASHER, SEALING

SEAL WASHER 12.2 x 17 x 1.5

1шт.

32

R2141660

METER

1шт.

33

N4328796

WASHER

10.25 x 7 x 20

1шт.

34

M1952297

HARNESS

1шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

36

L41824

NEG BATTERY CABLE

1шт.
