Запчасти Case 688BCK (5-02) - UNDERCARRIAGE, 688B CK (120301-120346) (04) - UNDERCARRIAGE

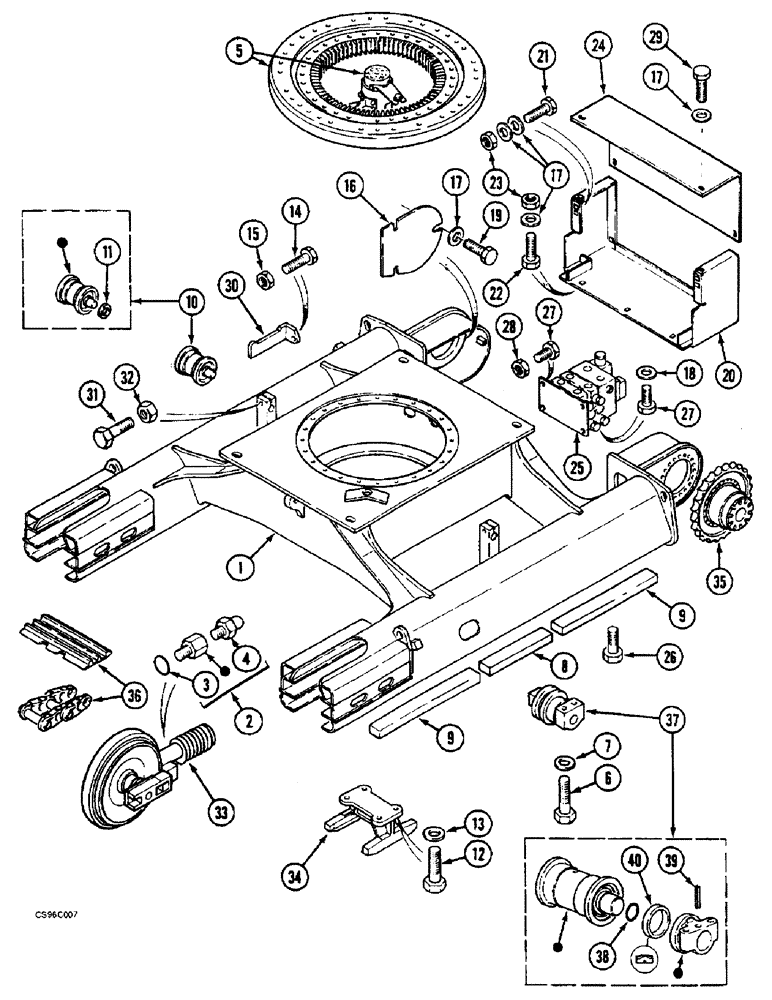

Схема запчастей Case 688BCK - (5-02) - UNDERCARRIAGE, 688B CK (120301-120346) (04) - UNDERCARRIAGE
39
32
36
9
4
17
3
26
35
20
30
18
24
28
16
37
25
9
34
1
22
19
6
10
7
33
8
5
40
13
38
14
17
15
11
23
27
2
21
27
12
17
31
29

Артикул

Название

Примечание

Количество

1

R3154925

CHASSIS

1шт.

2

W2643387

VALVE POPPET

2шт.

3

G1145268

GASKET

19.6 x 24.3 x 1.5

1шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

5

REF

INSTRUCTION

SLEWING RING SEE FIGURE: 9A-2

1шт.

6

P1133890

SCREW

M16 x 110 10.9

56шт.

7

E4628731

WASHER

16.5 x 6 x 30

56шт.

8

D4420350

PLATE,SMALL SQUARE

4шт.

9

C4420349

PLATE,SMALL SQUARE

8шт.

10

J2242301

ROLLER, TRACK

PULLEY

2шт.

11

D8846056

SET OF GASKET

SET OF JOINTS BOX

1шт.

12

A233841

SCREW

M16 x 70 10.9

8шт.

13

E4628731

WASHER

16.5 x 6 x 30

8шт.

14

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

2шт.

15

Q134564

SAFETY NUT

M20

2шт.

16

S3322573

COWL

2шт.

17

W3528795

WASHER

10.25 x 7 x 25

16шт.

18

U3528793

WASHER

12.25 x 8 x 30

1шт.

19

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

6шт.

20

H1726410

PROTECTOR

GUARD

1шт.

21

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

2шт.

22

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

2шт.

23

G34598

SAFETY NUT

M10

4шт.

24

D5625688

LARGE PLATE

PLATE, LARGE SHEET

1шт.

25

REF

INSTRUCTION

CONTROL VALVE SEE FIGURE: 7-10, 7-12

1шт.

26

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

8шт.

27

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

3шт.

28

E34596

SAFETY NUT

M12

2шт.

29

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

30

T2326789

STEP

2шт.

31

V833815

SCREW

M24 x 120

2шт.

32

S134566

SAFETY NUT

M24

2шт.

33

REF

INSTRUCTION

PULLEY SEE FIGURE: 5-10

1шт.

34

P7428231

GUIDE

55013 SEE: N.I.T. 3274

2шт.

35

REF

INSTRUCTION

REDUCER SEE FIGURE: 6-2

2шт.

36

REF

INSTRUCTION

TRACK SEE FIGURE: 5-6

2шт.

37

F2042382

ROLLER, TRACK

PULLEY

14шт.

38

F930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

3.53 x 44.04

2шт.

39

S435751

SPLIT PIN/SAFETY PIN

2шт.

40

J9346012

SET OF GASKET

SET OF JOINTS SEAL (ASSY.)

2шт.

Выбрано товаров: 40
