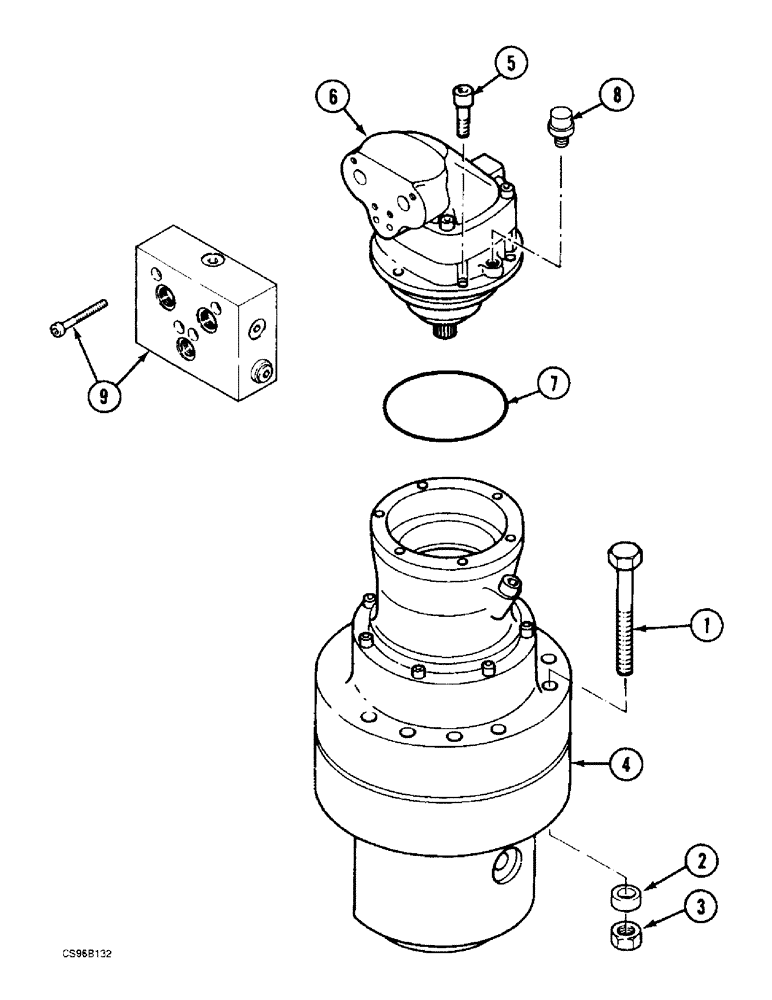

Запчасти Case 688BCK (6-08) - SWING MOTOR-DRIVE REDUCTION GEAR, 688B CK (120301-) (03) - TRANSMISSION

1

S1633867

SCREW,Hex, M20 x 180mm, Cl 10.9

8шт.

2

H5428789

WASHER

21 x 7 x 35

8шт.

3

S134106

NUT

M20

8шт.

4

REF

INSTRUCTION

REDUCER SEE FIGURE: 6-10

1шт.

5

K532988

SCREW,Hex Soc Hd, M10 x 25, 10.9

6шт.

6

REF

INSTRUCTION

MOTOR SEE FIGURE: 8C-44

1шт.

7

Z230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

5.7 x 139.3

1шт.

8

K4043386

VALVE POPPET,M14 x 1.5

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

9

REF

INSTRUCTION

BLOCK SEE FIGURE: 8C-40

1шт.
