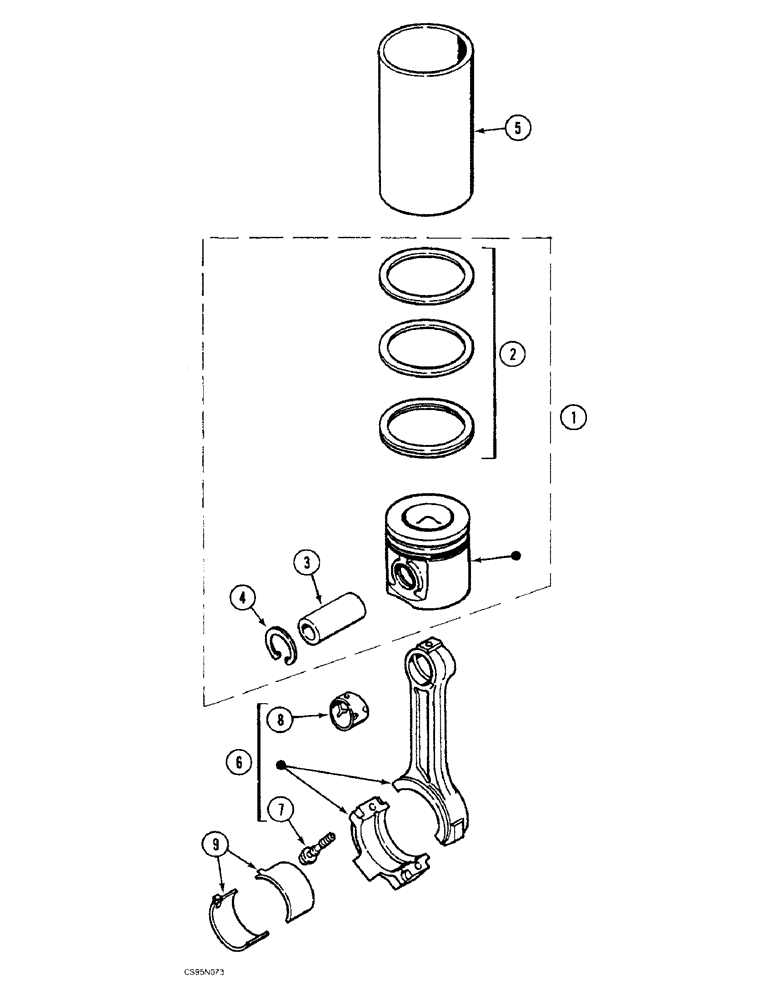

Запчасти Case 688BCK (2-46) - PISTONS, 688B CK (120301-) (01) - ENGINE

1

A77730

PISTON,104MM PISTON DIAMETER

(ASSY.)

4шт.

1

A77731

PISTON & RINGS KIT

+0.50

4шт.

1

A77732

PISTON

+1.00

4шт.

2

A77727

PISTON RING SET

1шт.

2

A77728

PISTON RING SET

20351 OVERSIZE: 0. 50MM

1шт.

2

A77729

PISTON RING SET

20351 OVERSIZE: 1.00MM

1шт.

3

J901793

PISTON PIN

1шт.

4

J901706

RING

SNAP

2шт.

5

J904166

SLEEVE

20351 SERVICE REPAIR ONLY: WHEN LINER IS INSTALLED USE ONLY PISTON A77730 ASSEMBLY.

1шт.

6

J901569

ROD, CONNECTING

4шт.

84145405R

REMAN-CONNECTING ROD

688BCK S/N 120301 & AFTER, Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

7

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

2шт.

8

J901085

BUSHING

1шт.

9

A77465

BEARING SET

SET

4шт.

9

A77466

BEARING SET

SET +0.25

4шт.

9

A77467

BEARING LINER

SET +0.50

4шт.

9

A77478

BEARING SET

SET +0.75

4шт.

9

A77469

BEARING SET

SET +1.0

4шт.
