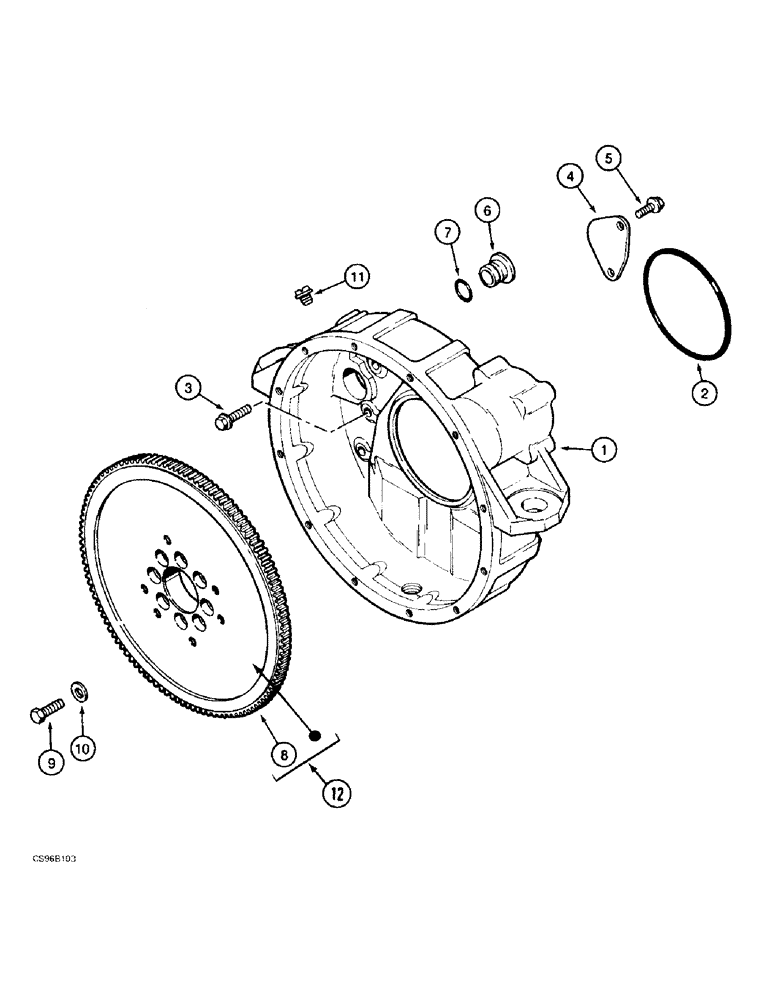

Запчасти Case 688BCK (2-44) - FLYWHEEL AND HOUSING, 688B CK (120301-) (01) - ENGINE

1

J903287

CASE

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J908095

PLATE

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

M8 x 21

2шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J905427

GEAR

SLEWING RING

1шт.

9

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

10

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

11

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

12

J907466

FLYWHEEL

HANDWHEEL

1шт.
