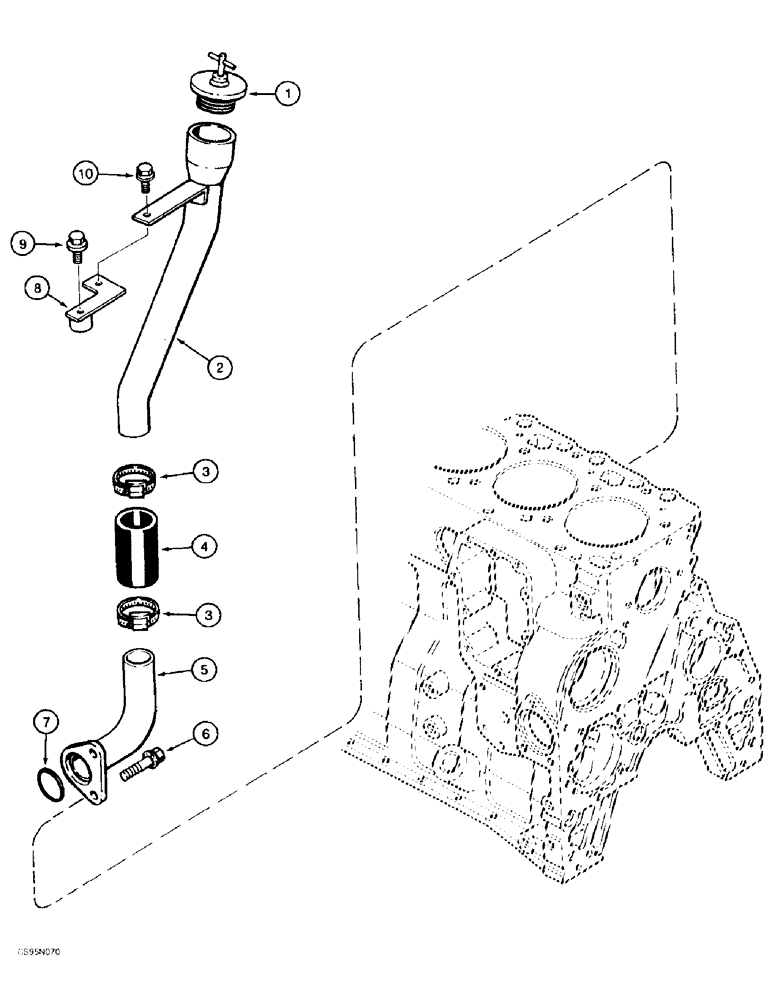

Запчасти Case 688BCK (2-40) - OIL FILL, 688B CK (120301-) (01) - ENGINE

1

A77424

FILLER CAP

1шт.

2

J912689

TUBE,38.1 mm OD x 371.1 mm L

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

Collar

2шт.

4

J912686

HOSE,38.1mm ID x 84mm L

1шт.

5

J912687

TUBE,38.1 mm ID x 195.9 mm L

1шт.

6

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

8

J912683

TUBE

SUPPORT

1шт.

9

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.
