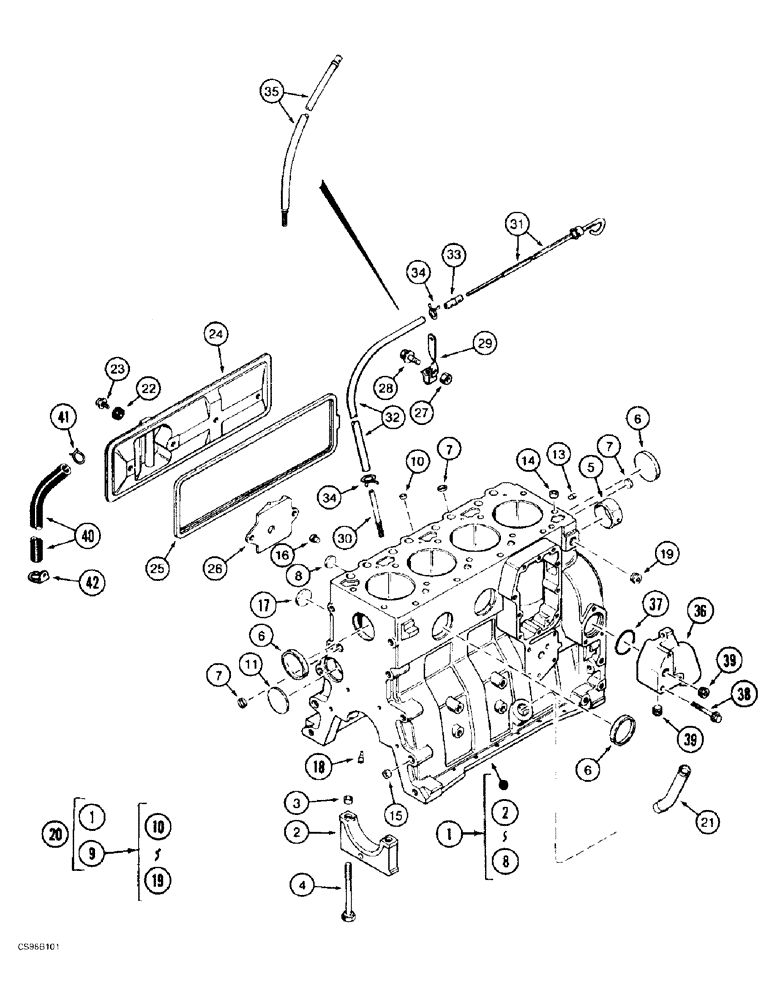

Запчасти Case 688BCK (2-38) - CYLINDER BLOCK, 688B CK (120301-) (01) - ENGINE

1

J916254

BLOCK ASSY.

1шт.

2

J900967

BEARING CAP

CAP

5шт.

3

J900068

BEARING WASHER

CENTERING RING 18 MM OD

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

BUSHING SEE FIG: 2-36

1шт.

6

A77782

PLUG

58 MM OD

4шт.

7

J900956

PLUG

18 MM OD

3шт.

8

A77539

PLUG

26 MM OD

2шт.

9

J802641

PACKAGE, REPAIR

SET OF PARTS

1шт.

10

J900955

PLUG

10 MM OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

SPLIT 16 MM

2шт.

14

J902343

DOWEL

CENTERING RING 16 MM OD

2шт.

15

J900068

BEARING WASHER

CENTERING RING 18 MM OD

2шт.

16

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

17

J900958

PLUG

32 MM OD

2шт.

18

J919002

NOZZLE CAP

SHROUD

4шт.

19

A77429

PLUG

1шт.

20

J920387

SKELETON ENGINE

BLOCK (ASSY.), 20368 CONSIST OF: HOUSING, PISTONS ASSEMBLY, CONNECTING RODS, CRANKSHAFT, BEARINGS, SCREW, DOWELS, SLEEVES AND HOUSING.

1шт.

21

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

1шт.

22

J900267

SEAL

4шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

24

J925680

COVER

SHEET

1шт.

25

J922078

GASKET

1шт.

26

J907586

BAFFLE

1шт.

27

825-1408

NUT,M8, Cl 8

1шт.

28

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

29

J905804

BRACKET

1шт.

30

J905425

TUBE,9.52 mm OD x 93 mm L

1шт.

31

J907709

DIPSTICK

GAUGE

1шт.

32

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

1шт.

33

J905802

FITTING,9.53 mm OD x 39 mm L

END FITTING

1шт.

34

214-103

HOSE CLAMP,#8, 1/2", Spring

COLLAR

2шт.

35

J279238

TUBE

1шт.

36

J903103

MANIFOLD

1шт.

37

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

38

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

39

A77429

PLUG

2шт.

40

J918612

TUBE,360.00 mm

1шт.

41

J904230

CLAMP,25.4mm

COLLAR

1шт.

42

J909670

CLIP

COLLAR

1шт.
