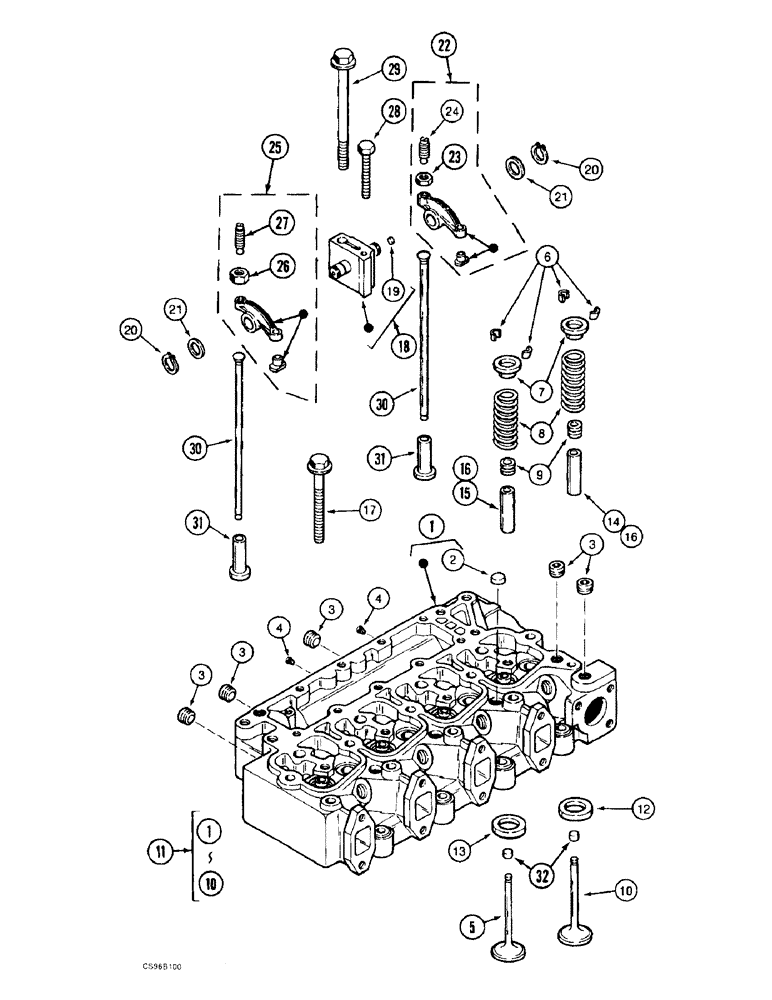

Запчасти Case 688BCK (2-34) - CYLINDER HEAD AND VALVE MECHANISM, 688B CK (120301-) (01) - ENGINE

1

J920005

HEAD (CYLINDER)

1шт.

2

A77783

PLUG

3шт.

3

A77429

PLUG

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

J920868

VALVE

EXHAUST

4шт.

6

CASJ900250

RETAINER

HALF COUPLING

16шт.

7

J900299

RETAINER

CUPEL

8шт.

8

J900276

VALVE SPRING

8шт.

9

J901097

SEAL

8шт.

10

J920867

VALVE

INTAKE

4шт.

11

J920611

HEAD (CYLINDER)

1шт.

12

J906854

SEAT, VALVE

4шт.

13

J904105

SEAT, VALVE

4шт.

14

J904408

GUIDE

14 MM OD

4шт.

15

J904409

GUIDE

14 MM OD

4шт.

16

J906206

GUIDE

11 MM OD

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

M12 x 70

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

M12 x 120

10шт.

18

J910814

SUPPORT

4шт.

19

J907555

PLUG

1/4-18 PT

1шт.

20

J900242

SNAP RING

SNAP

8шт.

21

J900245

WASHER

8шт.

22

J910811

ROCKER

VALVE LEVER

4шт.

23

425-116

NUT,3/8" - 24, Gr 5

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

25

J910810

ROCKER

VALVE LEVER

4шт.

26

425-116

NUT,3/8" - 24, Gr 5

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

29

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

4шт.

30

J923262

PUSH ROD

STEM

8шт.

31

J925031

TAPPET

PUSHER

8шт.

32

J280911

WEAR PAD

END FITTING

1шт.
