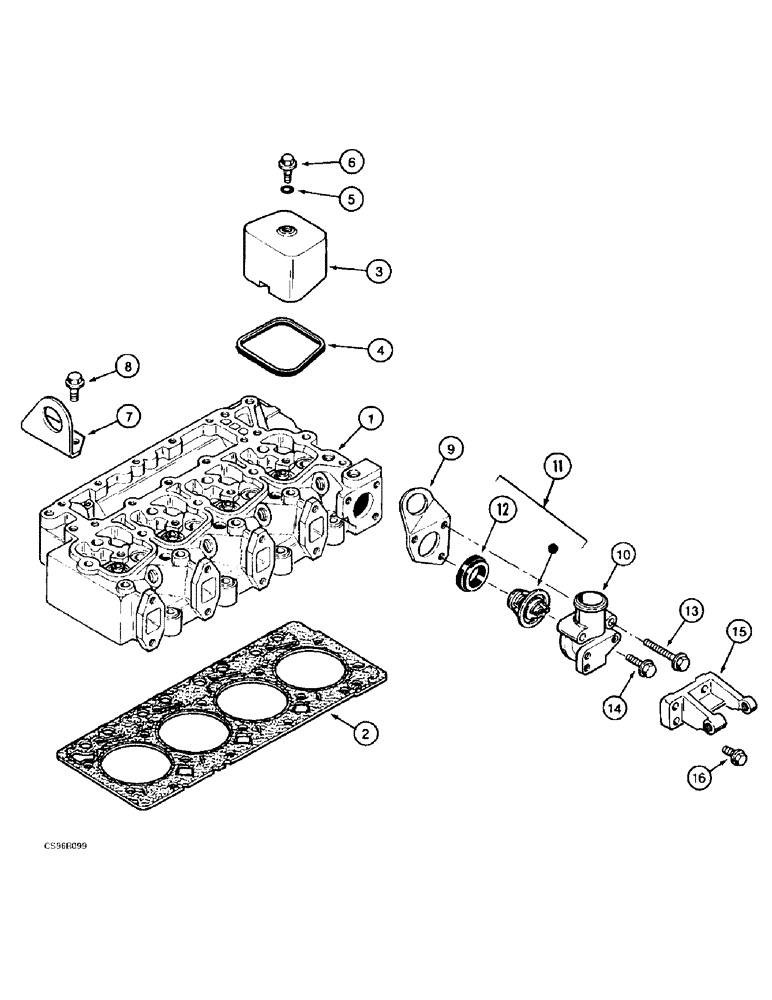

Запчасти Case 688BCK (2-32) - CYLINDER HEAD COVERS AND GASKET, 688B CK (120301-) (01) - ENGINE

1

REF

INSTRUCTION

HEAD (CYLINDER) SEE FIGURE: 2-34

1шт.

2

J921393

GASKET

CYL. HEAD

1шт.

2

J921395

CYLINDER HEAD GASKET

CYL. HEAD +0.25

1шт.

2

J921397

GASKET

CYL. HEAD +0.50

1шт.

3

J902604

COVER

VALVE

4шт.

4

J902666

GASKET

4шт.

5

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

7

J908118

BRACKET

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

9

J903757

BRACKET

1шт.

10

J914409

HOUSING

MANIFOLD

1шт.

11

A77736

THERMOSTAT

THERMOSTAT

1шт.

12

J923331

GASKET

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
