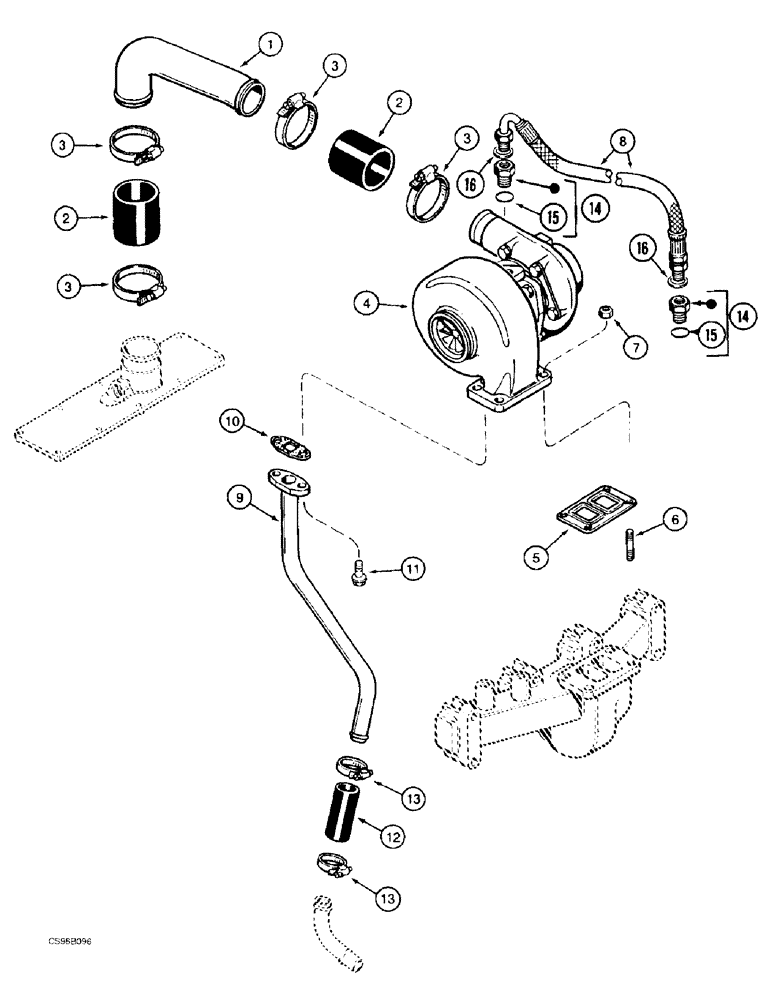

Запчасти Case 688BCK (2-24) - TURBOCHARGER, 688B CK (120301-) (01) - ENGINE

1

J906624

TUBE,2 mm OD x 265.1 mm L

ELBOW

1шт.

2

J916166

INTAKE AIR HOSE

71MM

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Collar

4шт.

4

REF

INSTRUCTION

TURBOCHARGER SEE FIGURE: 2-26

1шт.

5

J901356

GASKET,0.5mm Thk

1шт.

6

J818823

STUD

M10 x 40

4шт.

7

J818824

FLANGE NUT

M10

4шт.

8

J909545

HOSE

406 mm

1шт.

9

J903741

TUBE

(ASSY.)

1шт.

10

J914388

GASKET

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J903745

LARGE HOSE

HOSE,LARGE 76MM

1шт.

13

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Collar

2шт.

14

J919687

HYD CONNECTOR

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
