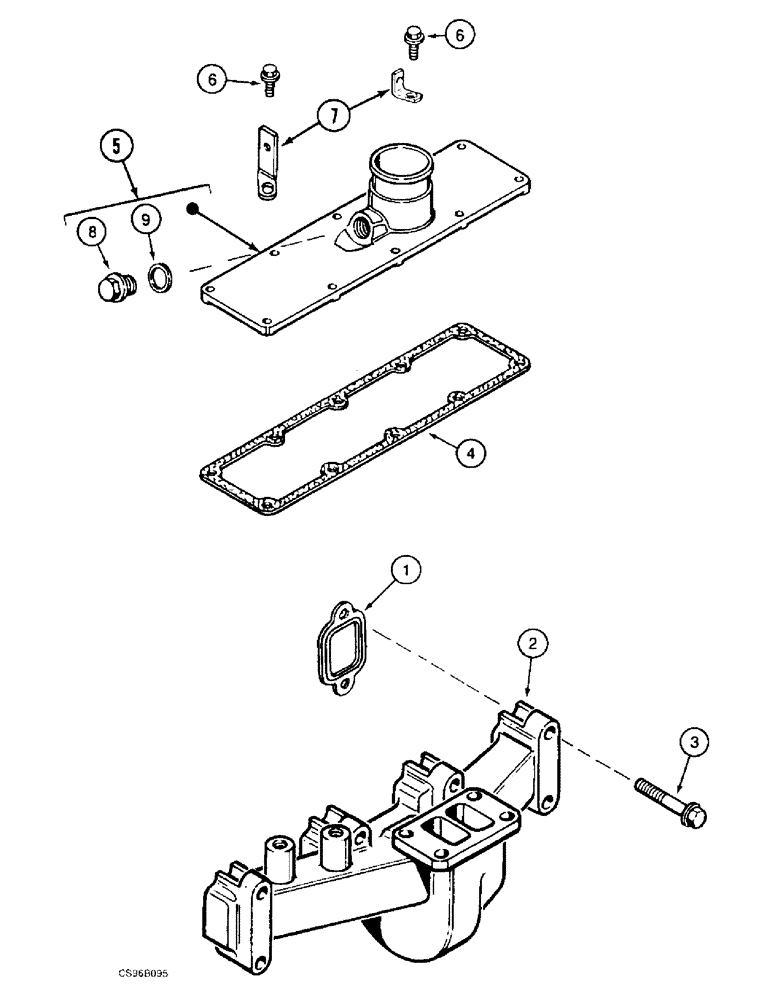

Запчасти Case 688BCK (2-22) - INTAKE AND EXHAUST PIPES, 688B CK (120301-) (01) - ENGINE

1

J905443

MANIFOLD GASKET

4шт.

2

J901635

MANIFOLD

1шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

8шт.

4

J914028

GASKET

1шт.

5

A77416

COVER

MANIFOLD

1шт.

6

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

10шт.

7

REF

INSTRUCTION

SUPPORT SEE FIGURE: 3-22

1шт.

8

J907185

PLUG

MANIFOLD

1шт.

9

J906773

WASHER

SEAL

1шт.
