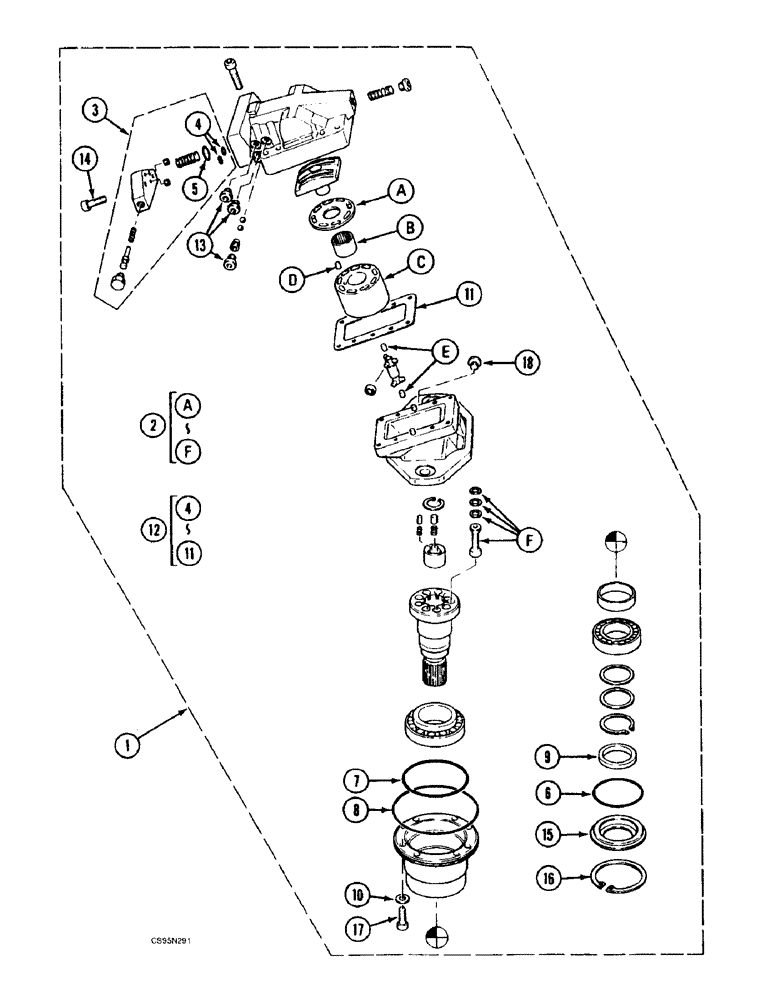

Запчасти Case 688BCK (7-26) - TRAVEL MOTOR - TWO-SPEED, 688B CK (120301-) (07.1) - UNDERCARRIAGE HYDRAULICS

1

Z2948530

MOTOR, HYDRAULIC

1шт.

2

H4043637

SET OF PARTS

ROTOR

1шт.

3

U3743774

SET OF PARTS

SELECTOR

1шт.

4

U3330418

O-RING

10.9 x 1.78

2шт.

5

V3330419

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

21.95 x 1.78

1шт.

6

P3230455

O-RING

94.5 x 3

1шт.

7

T3330417

O-RING

114.5 x 3

1шт.

8

S3330416

O-RING

150 x 4

1шт.

9

T9646056

SHAFT SEAL

BUSHING

1шт.

10

U5949658

OIL SEAL

RING 62731 REPLACE: Q9646099

8шт.

11

C9846003

SPECIAL MAT. SEAL

1шт.

12

M6149636

SEAL PACKAGE

1шт.

13

T3737402

PLUG

3шт.

K3230428

GASKET

14.7 x 21.1

1шт.

14

T832916

SCREW,Hex, M10 x 40mm, Cl 10.9

2шт.

15

Q1946389

PLATE

1шт.

16

F1136205

SNAP RING

1шт.

17

S732911

SCREW,Hex Skt Hd, M10 x 30mm, Cl 10.9

8шт.

18

G2537412

PLUG

M18 x 1.5MM

1шт.

S2230418

GASKET

15.7 x 20.9 x 1.5

1шт.
