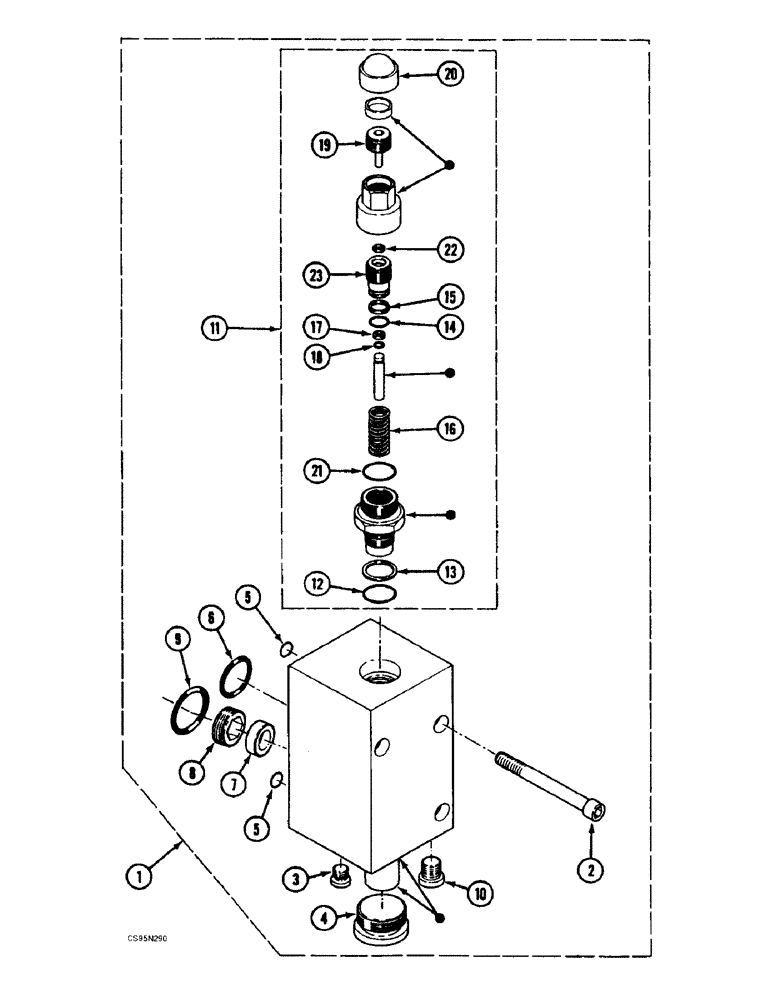

Запчасти Case 688BCK (7-22) - SPEED CONTROL LIMITER, 688B CK (120468-) (07.1) - UNDERCARRIAGE HYDRAULICS

1

G4043682

SHIN

LIMITER

1шт.

2

C32938

SCREW,M10 x 80mm

M10 x 80

3шт.

3

V2537448

PLUG

M10 x 1.0MM

1шт.

S2230441

GASKET

8.4 x 11.9 x 1

1шт.

4

B2537430

PLUG

M33 x 2.0MM

1шт.

T945294

GASKET

29.7 x 35.7 x 2

1шт.

5

G2230454

O-RING

2шт.

6

N630442

O-RING

3.53 x 28.17

1шт.

7

G9846007

RING

BUSHING

1шт.

8

T3737494

PLUG

1шт.

9

P630443

O-RING

3.53 x 29.74

1шт.

10

U2537447

PLUG

M14 x 1.5MM

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

11

M4143622

SET

CARTRIDGE, 62731 REPLACE: A4043699

1шт.

12

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2.65 x 25

1шт.

13

N1245232

RING

BUSHING

1шт.

14

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2.65 x 14

1шт.

15

M1245231

BACK-UP RING

1шт.

16

A2838177

SPRING

REPLACE: E2838181

1шт.

17

Q1145230

BACK-UP RING

1шт.

18

T2930401

O-RING

1шт.

19

M4128902

TAPPET

PUSHER

1шт.

20

X3937414

PLUG

1шт.

21

G30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2.62 x 29.82

1шт.

22

U3728824

SPECIAL RING

SPECIAL RING

1шт.

23

N4128903

TAPPET

PUSHER

1шт.
