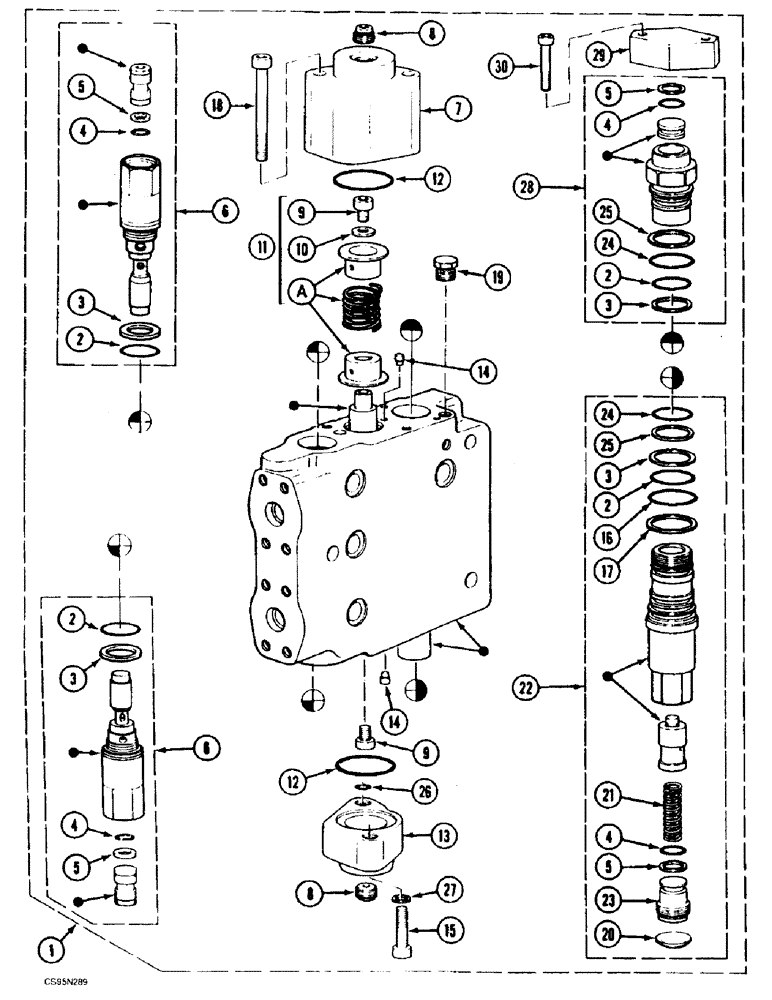

Запчасти Case 688BCK (7-18) - CONTROL VALVE SECTION - RIGHT TRAVEL, 688B CK (120301-) (07.1) - UNDERCARRIAGE HYDRAULICS

1

G4043659

DISTRIBUTOR

CONTROL VALVE

1шт.

2

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2.65 x 25

1шт.

3

N1245232

RING

BUSHING

1шт.

4

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2.65 x 14

1шт.

5

M1245231

BACK-UP RING

1шт.

6

P3143676

VALVE, PRESSURE RELI

EF SHOCK ABSORBER

2шт.

7

M4243212

CAP

1шт.

8

W3733012

SET SCREW

2шт.

9

K1432932

SCREW,Hex, M8 x 10, 10.9

2шт.

10

V1945382

WASHER

1шт.

11

Q4043667

SET

1шт.

12

V2930449

O-RING

2шт.

13

L4243211

CAP

1шт.

14

B4243225

JET

2шт.

15

NLS

NO LONGER SERVICED

M8 x 30

2шт.

16

W30403

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2.62 x 26.64

1шт.

17

G2445205

RING

BUSHING

1шт.

18

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

19

C3037405

PLUG

1шт.

20

E2340461

BLANK-OFF PLUG

1шт.

21

V2838173

SPRING

1шт.

22

R4043668

SET

1шт.

23

G3143669

SPARE PART SET

1шт.

24

H3230403

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

25

H2445206

RING

BUSHING

1шт.

26

P1630460

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

27

C2646060

WASHER

SEAL

2шт.

28

V4043672

SET

1шт.

29

F4043658

SHIN

COVER PLATE

1шт.

30

A732964

SCREW

M8 x 40

2шт.
