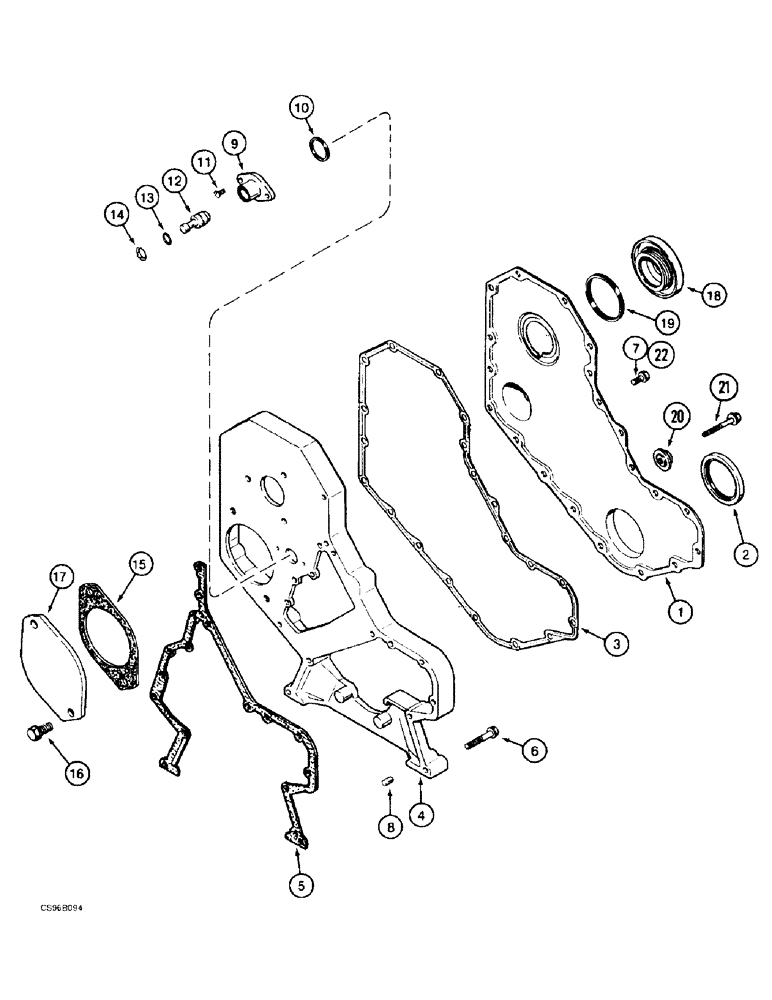

Запчасти Case 688BCK (2-20) - FRONT GEAR COVER, 688B CK (120301-) (01) - ENGINE

1

J903794

COVER

SHEET

1шт.

2

REF

INSTRUCTION

SEAL

1шт.

SEE FIGURE: 2-42

1шт.

3

J914385

GASKET,1.02mm Thk

1шт.

4

J920758

HOUSING

1шт.

5

J916131

GASKET

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

11шт.

8

J900257

PIN,10.01mm OD x 16mm L

SPLIT, 16 mm

2шт.

9

J919683

HOUSING

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

1шт.

13

J913994

O-RING

1шт.

14

J904849

SNAP RING,0.875", Int, #87

1шт.

15

J919601

GASKET

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

J914868

COVER

SHEET

1шт.

18

J903463

PLUG,M63 x 5

SHEET

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

20

J912772

RETAINER

BUSHING

1шт.

21

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

22

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

5шт.
