Запчасти Case 688BCK (7-14) - INLET MANIFOLD - TRAVEL CONTROL VALVE, 688B CK (120301-) (07.1) - UNDERCARRIAGE HYDRAULICS

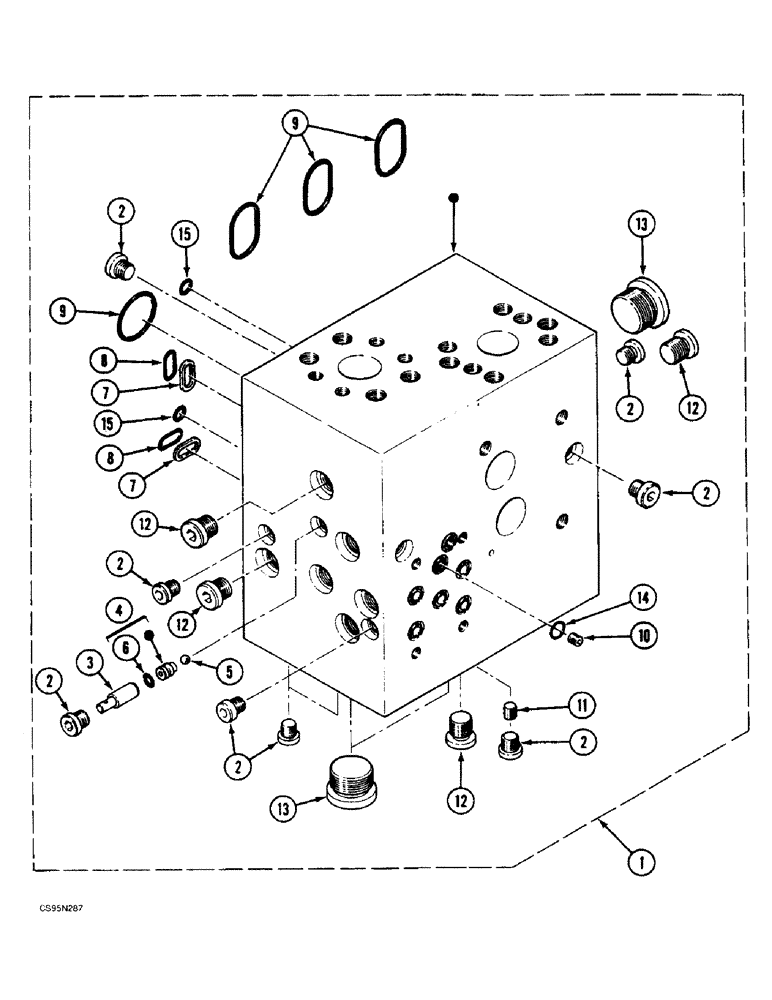

Схема запчастей Case 688BCK - (7-14) - INLET MANIFOLD - TRAVEL CONTROL VALVE, 688B CK (120301-) (07.1) - UNDERCARRIAGE HYDRAULICS
12
9
8
1
6
2
13
2
15
11
9
2
2
8
3
12
14
4
10
15
7
7
2
2
2
13
12
5
12

Артикул

Название

Примечание

Количество

1

M4043664

LARGE PLATE

PLATE, LARGE

1шт.

2

V2537448

PLUG

M10 x 1.0MM

10шт.

S2230441

GASKET

8.4 x 11.9 x 1

1шт.

3

H4243208

END FITTING

1шт.

4

C3628827

SEAT

1шт.

5

X31002

BALL

1шт.

6

T2930401

O-RING

1шт.

7

D3628828

BACK-UP RING

4шт.

8

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1.8 x 12.5

4шт.

9

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2.65 x 28

4шт.

10

J4243209

JET

1шт.

11

K4243210

JET

1шт.

12

U2537447

PLUG

M14 x 1.5MM

4шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

13

A2537429

PLUG

M27 x 2.0MM

3шт.

V5746063

GASKET

23.9 x 29.2 x 1.5

1шт.

14

P1630460

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

8шт.

15

T1730422

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1.78 x 4.47

3шт.

Выбрано товаров: 18
