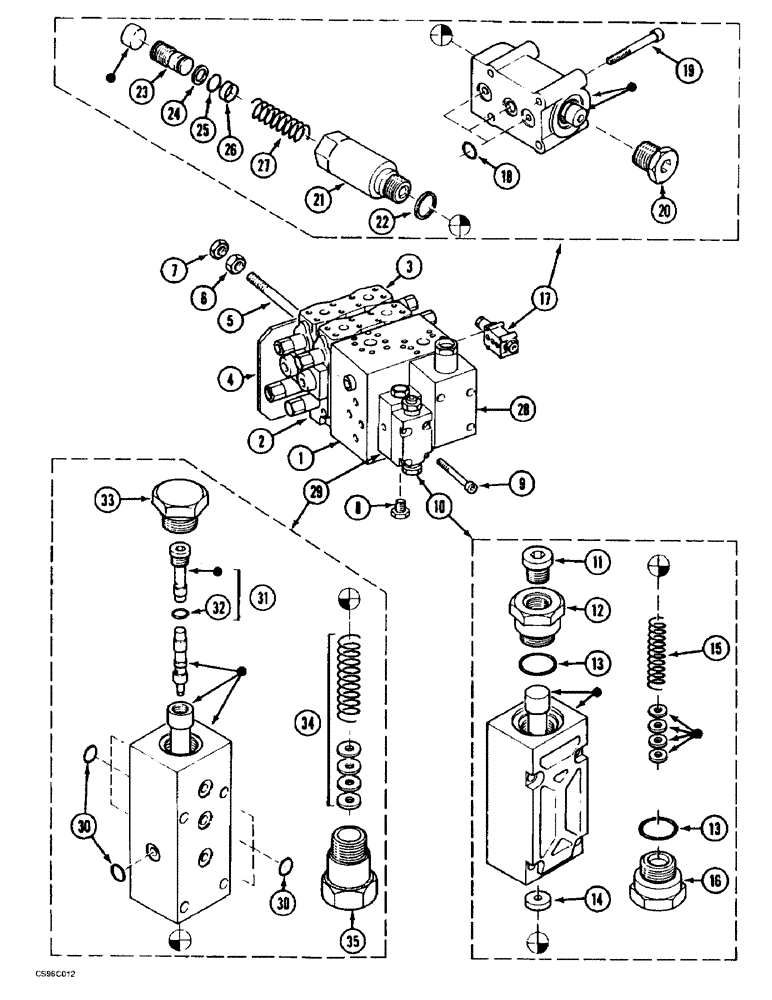

Запчасти Case 688BCK (7-12) - TRAVEL CONTROL VALVE - TWO-SPEED, 688B CK (120301-) (07.1) - UNDERCARRIAGE HYDRAULICS

1

REF

INSTRUCTION

PLATE SEE FIGURE: 7-14

1шт.

2

REF

INSTRUCTION

CONTROL VALVE SEE FIGURE: 7-16

1шт.

3

REF

INSTRUCTION

CONTROL VALVE SEE FIGURE: 7-18

1шт.

4

B3343695

LARGE PLATE

PLATE, LARGE SUPPORT

1шт.

5

P2527782

STEM

3шт.

6

Q34169

NUT

M16

3шт.

7

U34564

NUT

M16

3шт.

8

P1133844

SCREW

M12 x 16

3шт.

9

H932933

SCREW

M8 x 80

4шт.

10

K4043662

VALVE

1шт.

11

U2537447

PLUG

M14 x 1.5MM

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

12

A3337415

PLUG

FITTING

1шт.

13

W2930450

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

2шт.

14

U2745459

WASHER

1шт.

15

Z138160

COMPRESSION SPRING

1шт.

16

B3337416

PLUG

1шт.

17

H4043660

SHIN

1шт.

18

P1630460

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3шт.

19

K232907

SCREW

M5 x 20

4шт.

20

X3737498

PLUG

1шт.

U945295

GASKET

14.7 x 18.9 x 1.5

1шт.

21

W3737497

PLUG

BODY

1шт.

22

U945295

GASKET

14.7 x 18.9 x 1.5

1шт.

23

V3733011

SET SCREW

1шт.

24

J2445207

RING

BACK-UP

1шт.

25

G2230454

O-RING

1шт.

26

P4243214

SPACER

GUIDE

1шт.

27

U2838172

SPRING

1шт.

28

REF

INSTRUCTION

LIMITER SEE FIGURE: 7-20

1шт.

29

L4043663

SHIN

1шт.

30

P1630460

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

7шт.

31

S4043669

SET

1шт.

32

U3330441

GASKET

1шт.

33

U3737495

SET

PLUG

1шт.

E3330427

GASKET

1шт.

34

P4043666

SET

1шт.

35

V3737496

SET

PLUG

1шт.

E3330427

GASKET

1шт.
