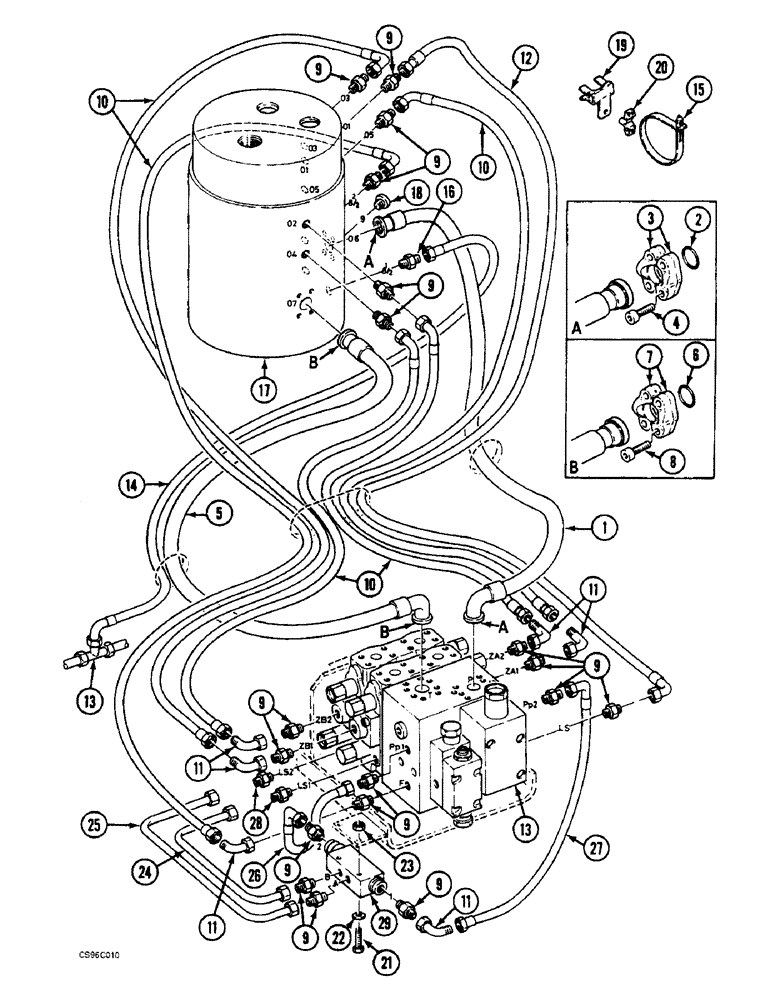

Запчасти Case 688BCK (7-02) - UNDERCARRIAGE CIRCUIT, 688B CK (120301-) (07.1) - UNDERCARRIAGE HYDRAULICS

1

V8031941

HOSE

830MM

1шт.

2

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3.53 x 32.92

2шт.

3

D4024267

SHIN

HALF CLAMP

4шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

5

J5431941

HOSE

800MM

1шт.

6

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3.53 x 32.92

2шт.

7

J4024272

BRACKET

HALF CLAMP

4шт.

8

14420221

HEX SOC SCREW,M10 x 30mm, Cl 8.8

8шт.

9

E3237530

UNION

18шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

10

K5431942

HOSE

1250MM

5шт.

11

N1737018

ANGLE

PIECE

6шт.

12

Q7931909

HOSE

1250MM

1шт.

13

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 7-4, 7-6

1шт.

14

G5431985

HOSE

800MM

1шт.

15

N51946

CLAMP

COLLAR 258MM

1шт.

16

G3237532

UNION

1шт.

S2230418

GASKET

15.7 x 20.9 x 1.5

1шт.

17

REF

INSTRUCTION

JOINT TURNING SEE FIGURE: 7-8

1шт.

18

U2537447

PLUG

M14 x 1.5MM

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

19

A2036903

CLASP

THONG 8-13MM

1шт.

20

PP2036939

CLASP

THONG

1шт.

21

V1633870

SCREW

M6 x 55 x 55

2шт.

22

B3528799

WASHER

6.25 x 4 x 15

2шт.

23

F234513

SAFETY NUT

M6

2шт.

24

R9247694

PIPE

1шт.

25

S9247695

PIPE

1шт.

26

W5431953

HOSE

400MM

1шт.

27

B6531955

HOSE

630MM

1шт.

28

Z5037597

FITTING

UNION

2шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

29

REF

INSTRUCTION

SELECTOR, 62754 SEE FIGURE: 7-28

1шт.
