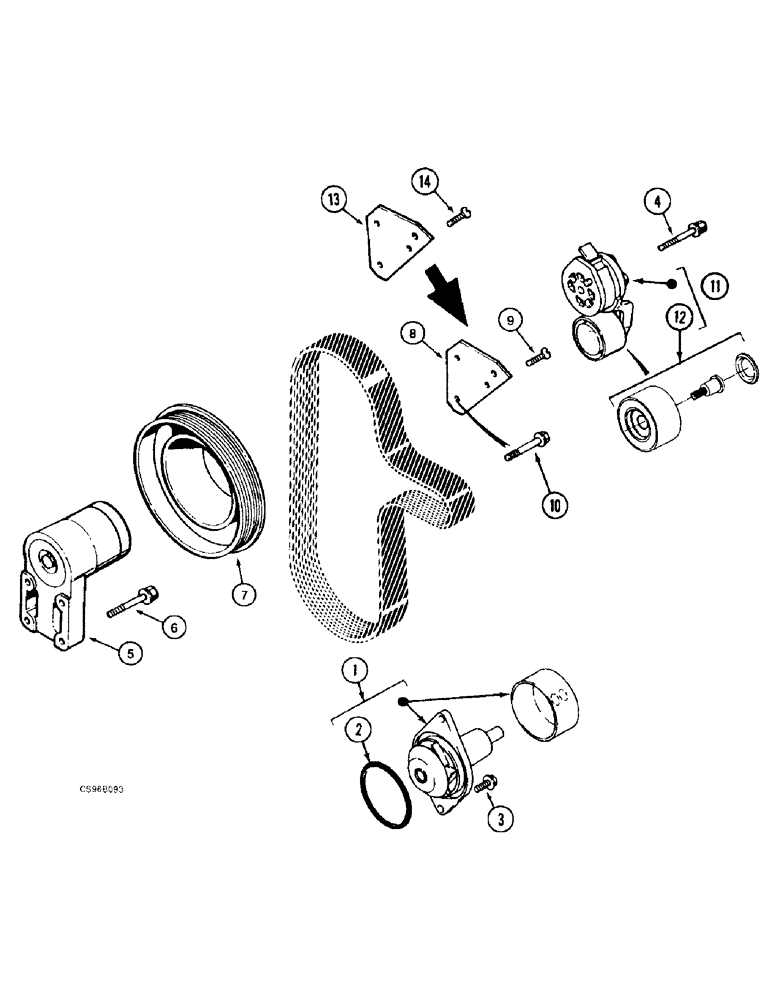

Запчасти Case 688BCK (2-18) - WATER PUMP SYSTEM , 688B CK (120301-) (01) - ENGINE

1

A77703

PUMP, WATER

1шт.

1

A77703GV

WATER PUMP

Value, water Pump Assy.

1шт.

1

J286278R

REMAN-WATER PUMP

688BCK Excavator S/N 120301 & Aft.

1шт.

1

J286278C

CORE-WATER PUMP

Return Number

1шт.

2

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

3

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

4

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

5

J913433

BRACKET

1шт.

6

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

7

REF

INSTRUCTION

PULLEY SEE FIGURE: 2-8

1шт.

8

J924182

SUPPORT

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

4шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

11

J918944

BELT TENSIONER

1шт.

12

A77817

KIT

TIGHTENER SHEAVE

1шт.

13

J918183

BRACKET

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.
