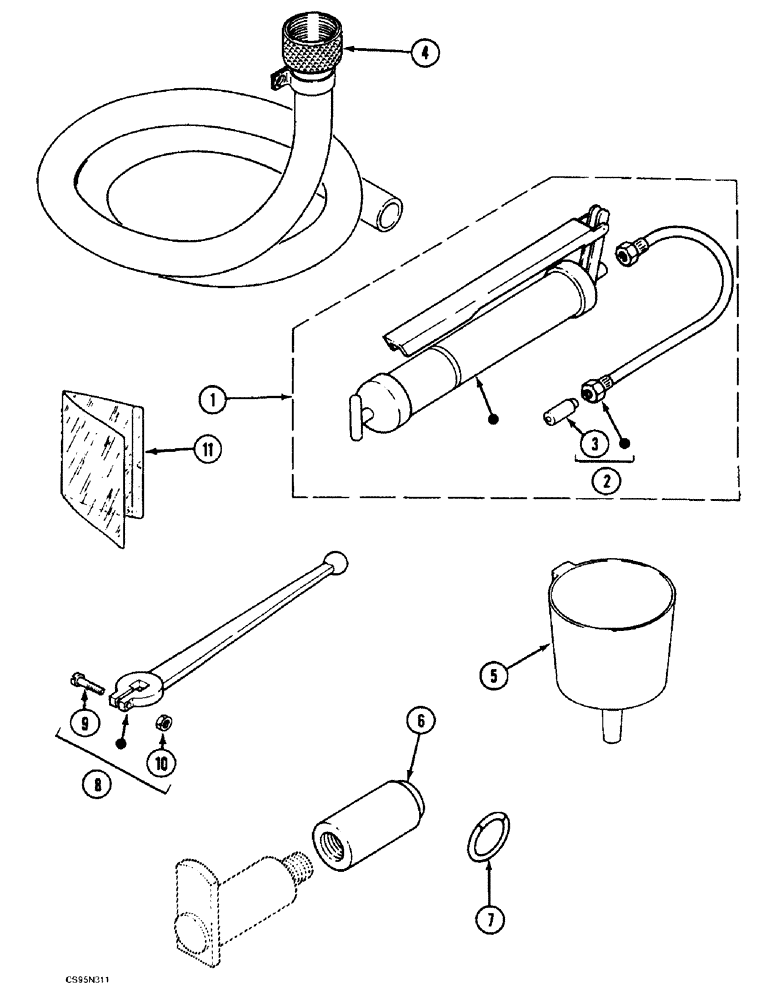

Запчасти Case 688BCK (9F-24) - TOOLS, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

W44433

PUMP

GREASE GUN

1шт.

2

P31960

HOSE

700MM

1шт.

3

D144420

CLASP

END FITTING

1шт.

4

R5037567

EXTENSION ASSY.

1шт.

5

Z2440253

FUNNEL

REPLACE: W840279

1шт.

6

H1844492

TRANSMISSION SLEEVE

COUPLING DIA. 55

1шт.

6

D144466

TRANSMISSION SLEEVE

COUPLING DIA. 60

1шт.

6

L1944430

TRANSMISSION SLEEVE

COUPLING DIA. 70

1шт.

6

V1944439

TRANSMISSION SLEEVE

COUPLING DIA. 80

1шт.

7

D3036969

RING

1шт.

8

M1352020

LEVER ASSY & KNOB

1шт.

9

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 x 12

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

11

R3651564

PROTECTOR

1шт.
