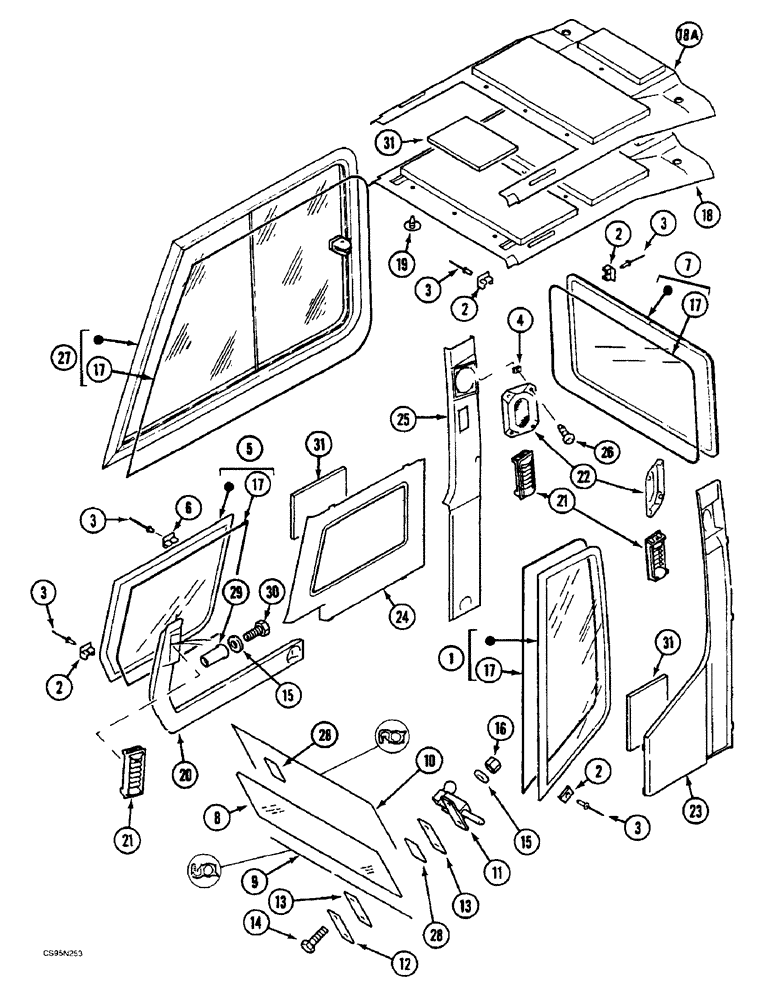

Запчасти Case 688BCK (9E-42) - CAB TRIM AND GLASS, 688B CK (120301-120534, 120536-120547, 120549-120565) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

G2047052

GLASS

1шт.

2

1328410C1

CLIP

TAPPET

10шт.

3

1328414C1

RIVET,Pop, 4mm OD x 22mm L

13шт.

4

3234214R1

SPRING NUT

8шт.

5

W2447063

GLASS

1шт.

6

1328409C1

CLAMP

TAPPET

1шт.

7

D2047049

GLASS

1шт.

8

S2447009

GLASS

1шт.

9

S9346089

SEAL

1шт.

10

H9646089

SEAL

1шт.

11

H1352062

LATCH ASSY.

2шт.

12

X3522816

LARGE PLATE

PLATE, LARGE FLAT IRON

2шт.

13

A4441438

LARGE PLATE

PLATE, LARGE

4шт.

14

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

15

U35001

WASHER

M6 N

7шт.

16

F234513

SAFETY NUT

M6

4шт.

17

Q203104

PACKAGE, REPAIR

SEAL, 90313 SEE: N.I.T. 3005

1шт.

18

A4641492

LINING

90313 STANDARD

1шт.

18a

B4641493

LINING

90313 OPENING ROOF

1шт.

19

Z2036971

BUTTON

7шт.

20

G4143226

CONDUIT

1шт.

21

1958752C1

VENT

GRILL

3шт.

22

1328281C2

GRILLE

PHILIPS, 90313 SET OF: 2

1шт.

22

1332317C1

GRILLE

AUDIOVOX, 90313 SET OF: 2

1шт.

23

F4641451

LINING

1шт.

24

D4641449

LINING

1шт.

25

E4641450

LINING

1шт.

26

905932R1

SELF-TAP SCREW,Oval Hd, M4.2 x 25

M4.2 x 25

8шт.

27

REF

INSTRUCTION

WINDOW, 90313 SEE FIGURE: 9E-50

1шт.

28

M3240458

MUDFLAP

PROTECTOR

2шт.

29

F35425

RIVET

M6

1шт.

30

120100

BOLT,M6 x 20mm, Cl 8.8

7шт.

31

W4641443

LARGE PLATE

PLATE, LARGE INSULATION

4шт.
