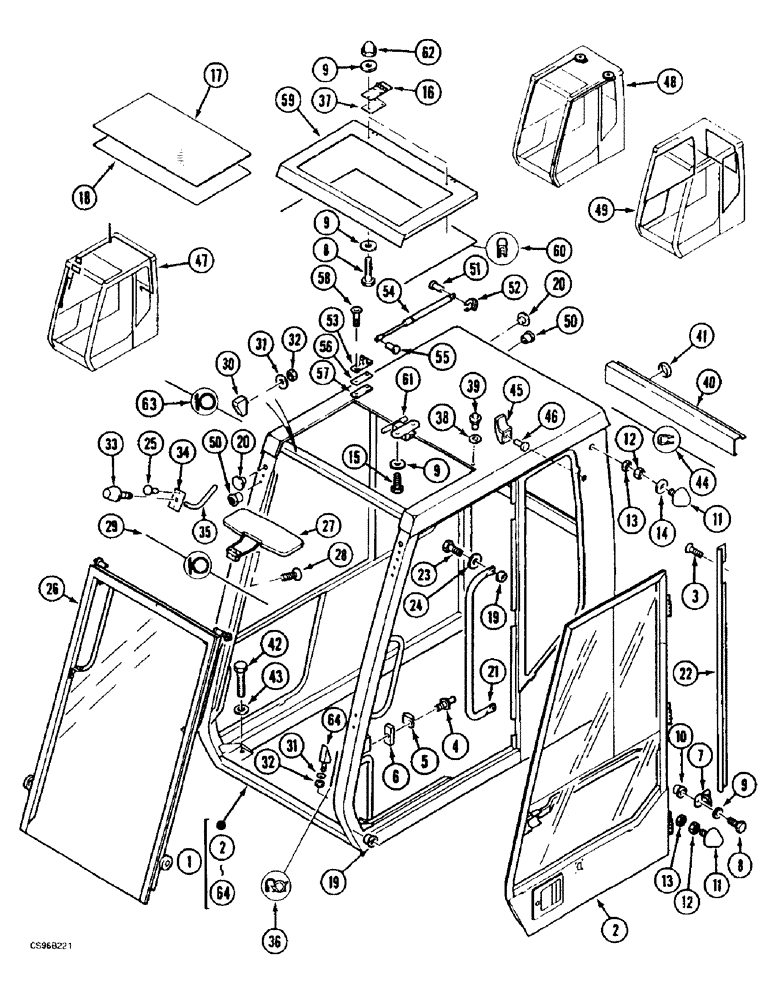

Запчасти Case 688BCK (9E-26) - CAB - TRANSPARENT OPENING ROOF (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

P9043889

CAB

1шт.

2

REF

INSTRUCTION

DOOR SEE FIGURE: 9E-60

1шт.

3

C1032403

SCREW,Sl Flat Csk Hd, M10 x 25mm, Cl 10.9

6шт.

4

1977984C1

LOCK PIN

PLATE, CATCH

1шт.

5

1977919C1

PROTECTOR

1шт.

6

P7022787

LARGE PLATE

PLATE, LARGE FLAT IRON

1шт.

7

U1652016

CATCH PLATE

1шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

9

U35001

WASHER

M6 N

14шт.

10

F35425

RIVET

M6

2шт.

11

N741463

STOP

2шт.

12

43362

NUT,M8 x 1.25, Cl 10

2шт.

13

L34211

NUT,M8

2шт.

14

715853R1

RING

M8 N

1шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

16

K1136623

HINGE

2шт.

17

D2447042

GLASS

PLATE

1шт.

18

Q203104

PACKAGE, REPAIR

SEAL, 90313 SEE: N.I.T. 3005

1шт.

19

Z35419

RIVET

M10

5шт.

20

W3237454

PLASTIC PLUG

BLANK-OFF F18

4шт.

21

F4747941

GRAB RAIL

1шт.

22

H2725990

LARGE PLATE

PLATE, LARGE SHEET

1шт.

23

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

24

W35003

WASHER

M10 N

3шт.

25

1328414C1

RIVET,Pop, 4mm OD x 22mm L

13шт.

26

REF

INSTRUCTION

WINDSCREEN SEE FIGURE: 9E-66

1шт.

27

E47027

VISOR, SUN

1шт.

28

A41424

SEAL

M5 x 16

3шт.

29

E9846005

GASKET

1шт.

30

C4741452

STOP

2шт.

31

D4328718

WASHER

5.25 x 3.5 x 12

7шт.

32

V834574

SAFETY NUT

M5

7шт.

33

L4143207

JET

1шт.

34

Z3522840

LARGE PLATE

PLATE, LARGE

1шт.

35

M1103643

PIPE

90311 ORDER LENGTH: 3500MM

1шт.

36

Z9646015

SEAL

2шт.

37

Z3522863

LARGE PLATE

PLATE, LARGE FLAT IRON

2шт.

38

L4441448

WASHER

2шт.

39

V3337457

PLUG

2шт.

40

N7628261

LARGE PLATE

PLATE, LARGE SHEET

1шт.

41

Q741419

GROMMET

3шт.

42

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

43

T3528792

WASHER

14.5 x 10 x 35

4шт.

44

M9646073

GASKET

2шт.

45

3234176R1

COAT HOOK

1шт.

46

S35413

RIVET

2шт.

47

REF

INSTRUCTION

ELECTRICAL CIRCUIT SEE FIGURE: 4-2

1шт.

48

REF

INSTRUCTION

WINDSHIELD ASSISTANCE SEE FIGURE: 9E-72

1шт.

49

REF

INSTRUCTION

GLASS SEE FIGURE: 9E-42

1шт.

50

F35448

RIVET,8mm OD x 18mm L

M8

12шт.

51

3234082R1

PIN

2шт.

52

3233681R1

SNAP RING

2шт.

53

3233680R3

CLEVIS

2шт.

54

K3836915

GAS STRUT

CYLINDER

2шт.

55

E35746

SPLIT PIN/SAFETY PIN

2шт.

56

3233679R1

PLATE

2шт.

57

R3522856

LARGE PLATE

PLATE, LARGE FLAT IRON

2шт.

58

843-2516

SCREW,Flat , M5 x 16mm, Cl 4.8

4шт.

59

V9143807

ASSEMBLY

ROOF

1шт.

60

B9646017

SEAL

1шт.

61

S1652014

LOCK

LATCHING DEVICE

2шт.

62

S3034544

NUT

M6

6шт.

63

F9846006

GASKET

1шт.

64

L4741483

STOP

2шт.
