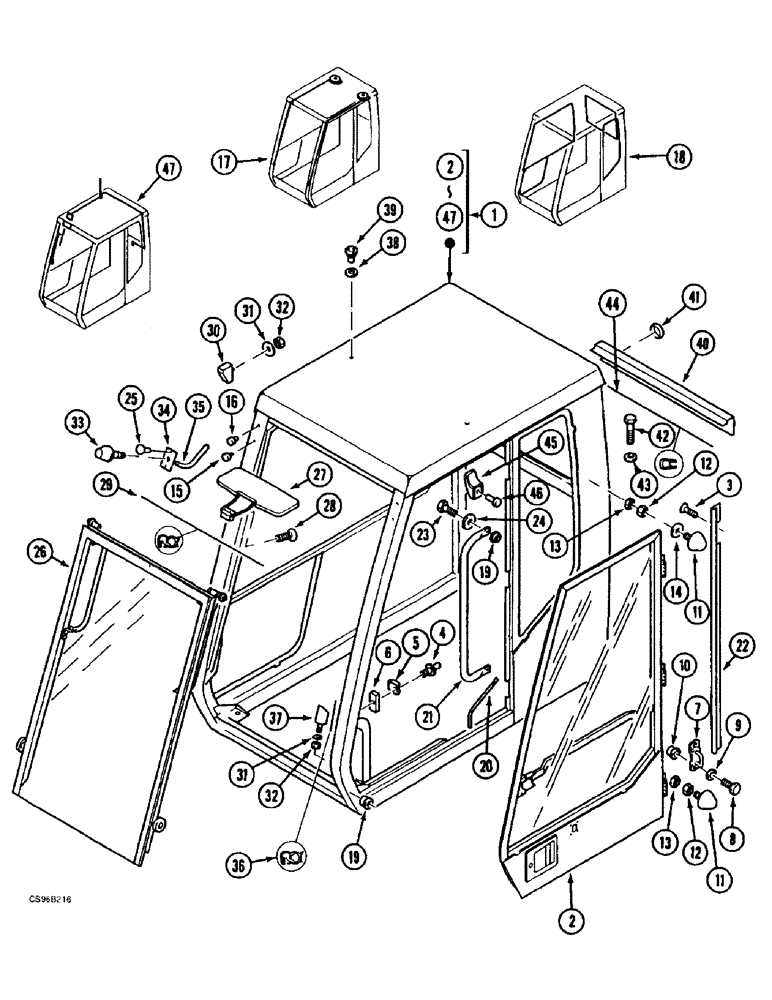

Запчасти Case 688BCK (9E-02) - CAB - STANDARD, 688B CK(120301-120387, 120400, 120401, 120410) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

M9043887

CAB

1шт.

2

REF

INSTRUCTION

DOOR SEE FIGURE: 9E-52

1шт.

3

C1032403

SCREW,Sl Flat Csk Hd, M10 x 25mm, Cl 10.9

6шт.

4

1977984C1

LOCK PIN

PLATE, CATCH

1шт.

5

1977919C1

PROTECTOR

1шт.

6

P7022787

LARGE PLATE

PLATE, LARGE FLAT IRON

1шт.

7

U1652016

CATCH PLATE

1шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

9

U35001

WASHER

M6 N

2шт.

10

F35425

RIVET

M6

2шт.

11

N741463

STOP

2шт.

12

43362

NUT,M8 x 1.25, Cl 10

2шт.

13

L34211

NUT,M8

2шт.

14

715853R1

RING

M8 N

1шт.

15

F35448

RIVET,8mm OD x 18mm L

M8

1шт.

16

W3237454

PLASTIC PLUG

BLANK-OFF F18

2шт.

17

REF

INSTRUCTION

WINDSHIELD ASSISTANCE SEE FIGURE: 9E-72

3шт.

18

REF

INSTRUCTION

GLASS SEE FIGURE: 9E-42

2шт.

19

Z35419

RIVET

M10

5шт.

20

H4747920

GRAB RAIL

1шт.

21

X4747911

GRAB RAIL

1шт.

22

H2725990

LARGE PLATE

PLATE, LARGE SHEET

1шт.

23

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

24

W35003

WASHER

M10 N

3шт.

25

1328414C1

RIVET,Pop, 4mm OD x 22mm L

2шт.

26

REF

INSTRUCTION

WINDSCREEN SEE FIGURE: 9E-66

1шт.

27

E47027

VISOR, SUN

1шт.

28

L32440

SCREW

M5 x 16

3шт.

29

J9646070

GASKET

1шт.

30

J4441492

STOP

2шт.

31

P34605

WASHER

M5 U

4шт.

32

V834574

SAFETY NUT

M5

4шт.

33

L4143207

JET

1шт.

34

Z3522840

LARGE PLATE

PLATE, LARGE

1шт.

35

M1103643

PIPE

90311 ORDER LENGTH: 3500MM

1шт.

36

Z9646015

SEAL

2шт.

37

C4241455

STOP

2шт.

38

L4441448

WASHER

2шт.

39

V3337457

PLUG

2шт.

40

N7628261

LARGE PLATE

PLATE, LARGE SHEET

1шт.

41

Q741419

GROMMET

3шт.

42

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

43

T3528792

WASHER

14.5 x 10 x 35

4шт.

44

M9646073

GASKET

2шт.

45

3234176R1

COAT HOOK

1шт.

46

S35413

RIVET

2шт.

47

REF

INSTRUCTION

ELECTRICAL CIRCUIT SEE FIGURE: 4-2

1шт.
