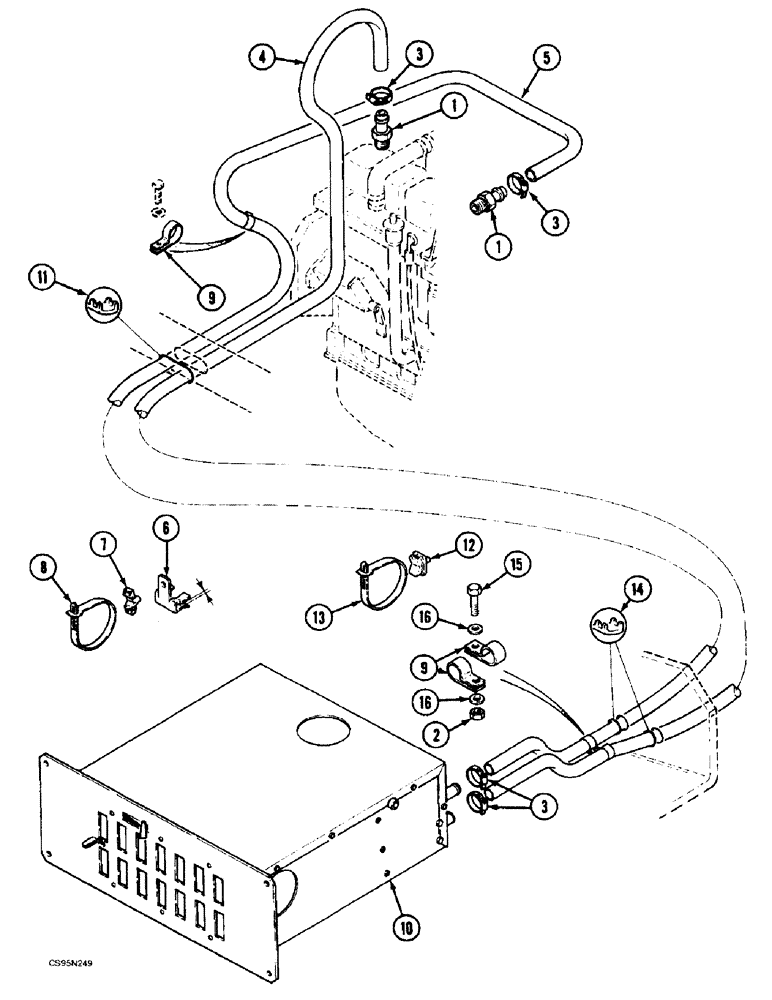

Запчасти Case 688BCK (9D-38) - HEATING CIRCUIT, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

Z4837543

FITTING

2шт.

2

G34598

SAFETY NUT

M10

1шт.

3

P3836919

COLLAR CLAMP

20-35MM

4шт.

4

C3636

HOSE, BULK

HOSE, METERS 90315 ORDER LENGTH: 4250MM

1шт.

5

C3636

HOSE, BULK

HOSE, METERS 90315 ORDER LENGTH: 3600MM

1шт.

6

Z2036902

CLASP

THONG 3-7MM

1шт.

6

A2036903

CLASP

THONG 8-13MM

1шт.

7

PP2036939

CLASP

THONG

1шт.

8

N51946

CLAMP

COLLAR 258MM

1шт.

9

R836985

CLAMP

COLLAR 27-31MM

3шт.

10

REF

INSTRUCTION

HEATING, 90315 SEE FIGURE: 4-24

1шт.

11

B1303158

PROTECTOR

GROMMET, 90315 ORDER LENGTH: 155MM

2шт.

12

G3036926

BASE

1шт.

13

D136922

BLISTER

COLLAR 351MM

1шт.

14

E1303161

GROMMET

90315 ORDER LENGTH: 115MM

2шт.

15

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

16

W35003

WASHER

M10 N

2шт.
