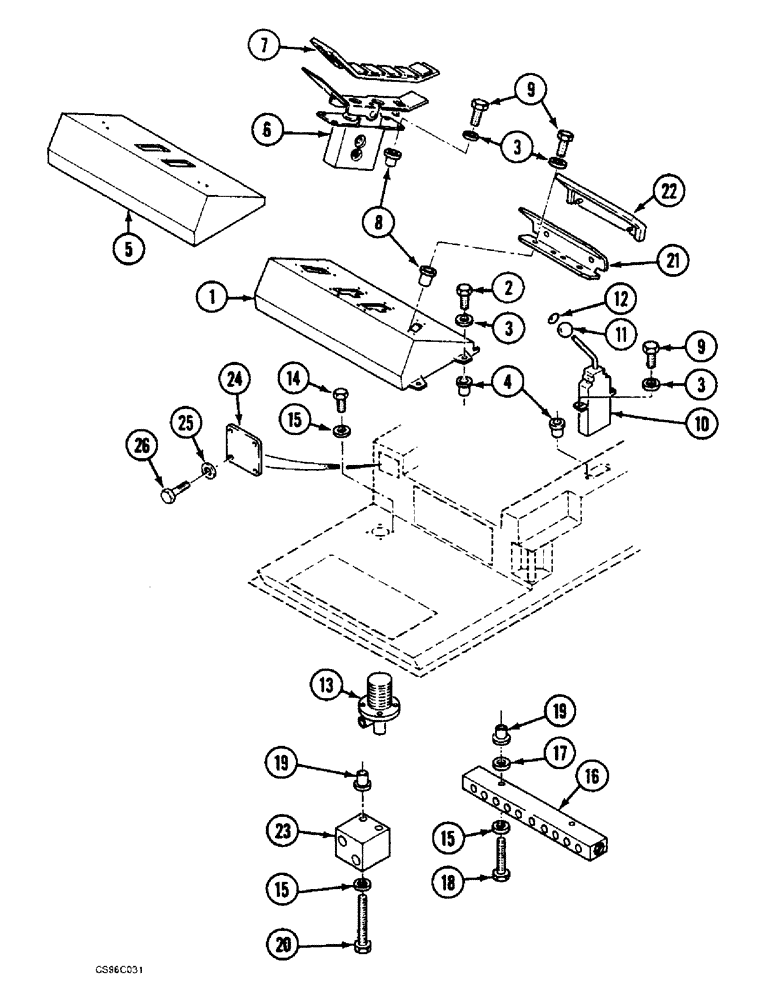

Запчасти Case 688BCK (9D-26) - OPERATORS COMPARTMENT, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

Z7628225

SUPPORT

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

715853R1

RING

M8 N

18шт.

4

F35448

RIVET,8mm OD x 18mm L

M8

6шт.

5

V4441480

PROTECTOR

MAT, 90319 688B CK (120301-120534, 120536-120547, 120549-120565)

1шт.

5

W4841451

MAT

90319 688B CK (120535, 120548, 120566-)

1шт.

6

REF

INSTRUCTION

BLOCK SEE FIGURE: 8D-8

2шт.

7

K4641409

PROTECTOR

62754 REPLACE: N4741416

2шт.

8

H35427

RIVET

M8

12шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

10

REF

INSTRUCTION

BLOCK SEE FIGURE: 8D-10

1шт.

11

C152055

BALL KNOB

1шт.

12

U2551569

BALL KNOB

IDEOGRAM

1шт.

13

REF

INSTRUCTION

PUMP SEE FIGURE: 8D-2

1шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

15

U35001

WASHER

M6 N

8шт.

16

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8D-2

1шт.

17

B3528799

WASHER

6.25 x 4 x 15

2шт.

18

T133808

SCREW

M6 x 45

2шт.

19

F35425

RIVET

M6

4шт.

20

G433855

SCREW

M6 x 70

2шт.

21

J3226195

FOOT REST

2шт.

22

J4641408

PROTECTOR

2шт.

23

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8D-4

1шт.

24

B1323651

LARGE PLATE

PLATE, LARGE COVER, 90115 688B CK (120532-120542, 120544-)

1шт.

25

R34607

WASHER

M6 U

4шт.

26

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.
