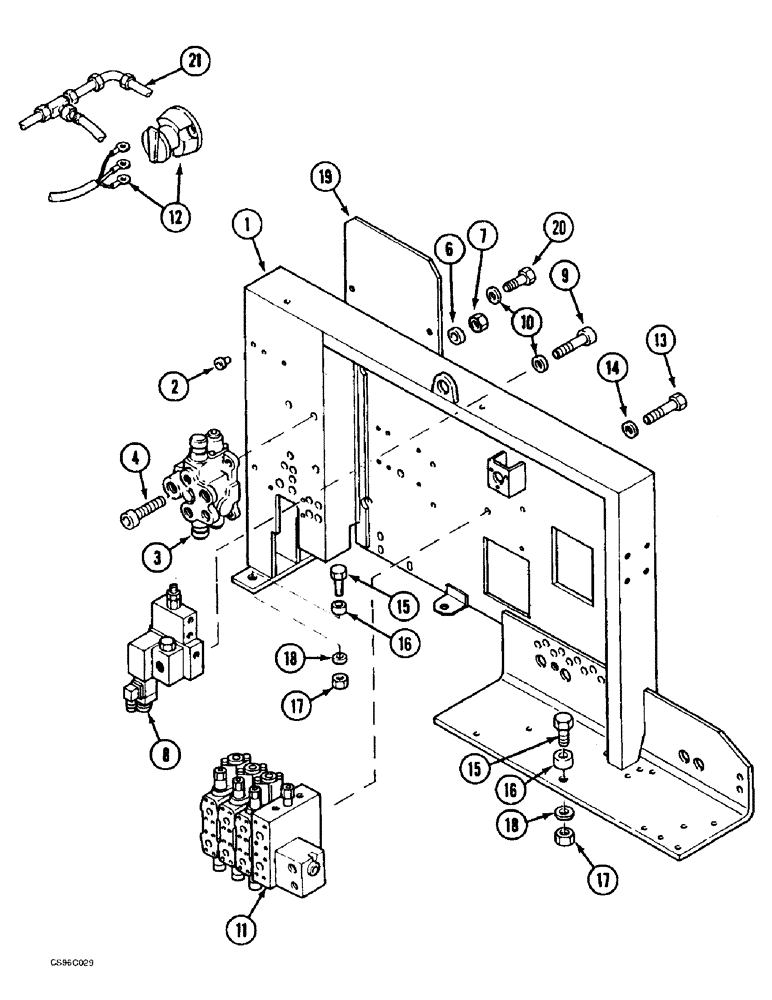

Запчасти Case 688BCK (9C-02) - VALVE BANK PARTITION, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

R6754954

PARTITION

1шт.

2

F35448

RIVET,8mm OD x 18mm L

M8

9шт.

3

REF

INSTRUCTION

BLOCK SEE FIGURE: 8C-28

1шт.

4

T832916

SCREW,Hex, M10 x 40mm, Cl 10.9

3шт.

6

W3528795

WASHER

10.25 x 7 x 25

3шт.

7

G34598

SAFETY NUT

M10

3шт.

8

REF

INSTRUCTION

BLOCK SEE FIGURE: 8C-32

1шт.

9

Q732909

BOLT,Hex, M8 x 25, 8.8

3шт.

10

V3528794

WASHER

8.25 x 6 x 20

7шт.

11

REF

INSTRUCTION

BLOCK SEE FIGURE: 8C-14

1шт.

12

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 4-14

1шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

3шт.

14

U3528793

WASHER

12.25 x 8 x 30

3шт.

15

11125221

BOLT,Hex, M20 x 75, 8.8

4шт.

16

K4328747

WASHER

21 x 14 x 35

4шт.

17

Q134564

SAFETY NUT

M20

4шт.

18

H5428789

WASHER

21 x 7 x 35

4шт.

19

V4623479

HOOD

SHEET, 90115 688B CK (120301-1203...)

1шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

21

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-2 - 8C-12

1шт.
