(9B-10) - CAB AIR CONDITIONING - AIR INTAKE COMPARTMENT, 688B CK (120301-)

Запчасти Case 688BCK (9B-10) - CAB AIR CONDITIONING - AIR INTAKE COMPARTMENT, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

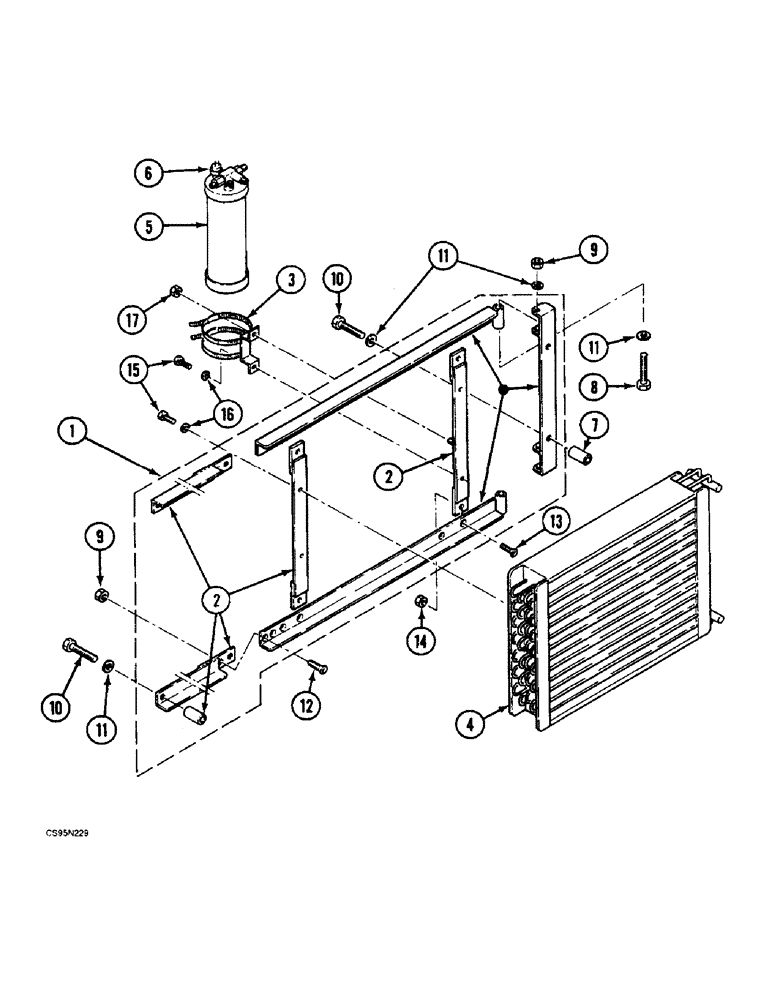

Схема запчастей Case 688BCK - (9B-10) - CAB AIR CONDITIONING - AIR INTAKE COMPARTMENT, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS
9
4
11
8
14
10
13
11
16
10
15
5
2
12
11
1
2
9
6
3
17
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

W8128266

SUPPORT

1шт.

2

V9143853

SUPPORT

1шт.

3

C8128271

SUPPORT

1шт.

4

V4243220

ASSEMBLY

CONDENSER

1шт.

5

L2950565

RESERVOIR

DRYER

1шт.

6

REF

INSTRUCTION

PRESSURE SWITCH SEE FIGURE: 4-46

1шт.

7

X5928708

SPACER

2шт.

8

120071

BOLT,Hex, M10 x 65, 8.8

2шт.

9

G34598

SAFETY NUT

M10

6шт.

10

614-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8, Full Thd

4шт.

11

W35003

WASHER

M10 N

10шт.

12

N32465

HEX SOC SCREW,M10 x 25mm, Cl 10.9

4шт.

13

F32412

SCREW,Sl, M8 x 20mm, Cl 10.9

M8 x 20 10.9

4шт.

14

A134596

SAFETY NUT

M8

4шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

16

U35001

WASHER

M6 N

4шт.

17

F234513

SAFETY NUT

M6

1шт.
