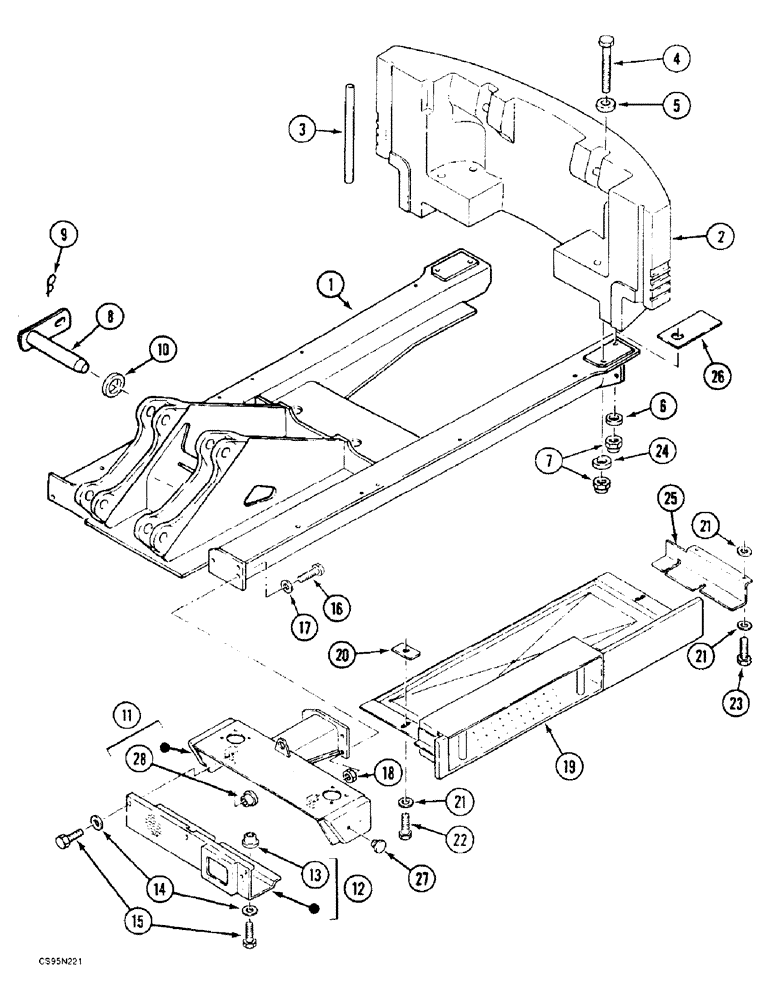

Запчасти Case 688BCK (9A-06) - UPPERSTRUCTURE CHASSIS, 688B CK(120535, 120606-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

B1054965

FRAME

1шт.

2

X603840

COUNTERWEIGHT

COUNTERWEIGHT

1шт.

3

Z1303179

GASKET

90117 ORDER LENGTH: 770MM

2шт.

4

Z433848

SCREW

M27 x 305, 90117 688B CK (120535, 120606-120618)

4шт.

4

B2133826

SCREW

M30 x 315, 90117 688B CK (120619-)

4шт.

5

G4328721

WASHER

28 x 19 x 60, 90117 688B CK (120535, 120606-120618)

4шт.

5

U4328779

WASHER

31 x 21 x 70, 90117 688B CK (120619-)

4шт.

6

T5428707

WASHER

28 x 19 x 40, 90117 688B CK (120535, 120606-120618)

2шт.

6

G4528706

WASHER

31 x 21 x 55, 90117 688B CK (120619-)

2шт.

7

D634504

NUT

M27, 90117 688B CK (120535, 120606-120618)

4шт.

7

W3034548

NUT

M30, 90117 688B CK (120619-)

4шт.

8

E3430937

PIN

Dia 60

4шт.

9

C36020

SPLIT PIN/SAFETY PIN

4шт.

10

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

75 x 60 x 8

8шт.

11

Z8228295

BEAM ASSY.

1шт.

12

A8228296

LARGE PLATE

PLATE, LARGE SHEET

1шт.

13

Z35419

RIVET

M10

2шт.

14

W3528795

WASHER

10.25 x 7 x 25

5шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

5шт.

16

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

3шт.

17

K4328747

WASHER

21 x 14 x 35

6шт.

18

Q134564

SAFETY NUT

M20

3шт.

19

M3526141

SPOOL

COVER PLATE

1шт.

20

S6522793

PLATE

FLAT IRON

2шт.

21

N4328796

WASHER

10.25 x 7 x 20

6шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

23

J1133839

SCREW

M10 x 45 x 45

2шт.

24

G4328721

WASHER

28 x 19 x 60, 90131 688B CK (120535, 120606-120618)

2шт.

24

F5928715

WASHER

90131 688B CK (120619-)

2шт.

25

F6826681

LARGE PLATE

PLATE, LARGE SUPPORT

1шт.

26

N7722791

SHIM,1.5mm Thk

Dia = 30, 90117 688B CK (120535, 120606-120618)

1шт.

26

P7722792

SHIM,2mm Thk

Dia = 30, 90117 688B CK (120535, 120606-120618)

1шт.

26

Q7722793

SHIM,3mm Thk

Dia = 30, 90117 688B CK (120535, 120606-120618)

1шт.

26

R7722794

SHIM,4mm Thk

Dia = 30, 90117 688B CK (120535, 120606-120618)

1шт.

26

H7822721

SHIM,1.5mm Thk

(Dia = 32), 90117 688B CK (120619-)

1шт.

26

J7822722

SHIM,2mm Thk

Dia = 32, 90117 688B CK (120619-)

1шт.

26

K7822723

SHIM,3mm Thk

Dia = 32, 90117 688B CK (120619-)

1шт.

26

L7822724

SHIM

4MM-DIA. 32, 90117 688B CK (120619-)

1шт.

27

W3237454

PLASTIC PLUG

BLANK-OFF F18

2шт.

28

Z35419

RIVET

M10

3шт.
