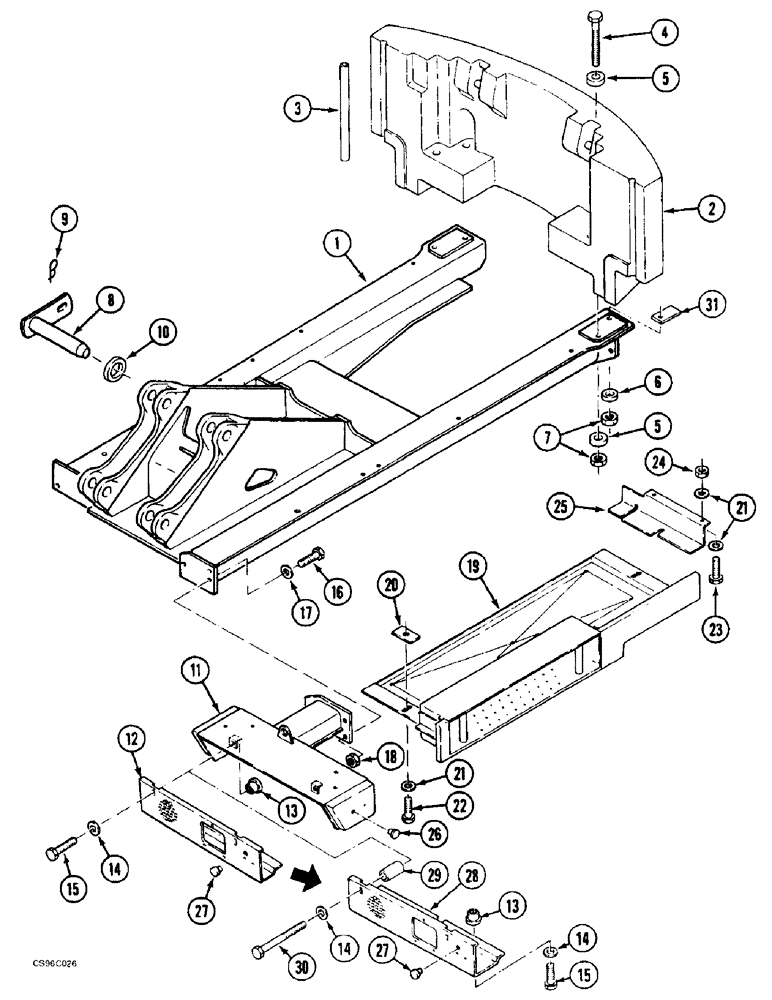

Запчасти Case 688BCK (9A-04) - UPPERSTRUCTURE CHASSIS, 688B CK (120301-120534, 120536-120605) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

B1054965

FRAME

1шт.

2

X603840

COUNTERWEIGHT

COUNTERWEIGHT

1шт.

3

Z1303179

GASKET

90117 ORDER LENGTH: 770MM

2шт.

4

Z433848

SCREW

M27 x 305

4шт.

5

G4328721

WASHER

28 x 19 x 60

6шт.

6

T5428707

WASHER

28 x 19 x 40

2шт.

7

D634504

NUT

M27

4шт.

8

E3430937

PIN

Dia 60

4шт.

9

C36020

SPLIT PIN/SAFETY PIN

4шт.

10

R151309

SEAL,60mm ID x 75mm OD x 8mm Thk

75 x 60 x 8

8шт.

11

B7928262

BEAM

1шт.

12

L7928294

SUPPORT

SHEET, 90131 688 CK (120301-120498)

1шт.

13

Z35419

RIVET

M10

4шт.

14

W3528795

WASHER

10.25 x 7 x 25

4шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

90131 688 CK (120301-120498)

4шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

90131 688B CK (120499-)

2шт.

16

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

3шт.

17

K4328747

WASHER

21 x 14 x 35

6шт.

18

Q134564

SAFETY NUT

M20

3шт.

19

M3526141

SPOOL

COVER PLATE, 90131 REPLACE: H9043883

1шт.

20

S6522793

PLATE

FLAT IRON

2шт.

21

N4328796

WASHER

10.25 x 7 x 20

6шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

23

J1133839

SCREW

M10 x 45 x 45

2шт.

24

G34598

SAFETY NUT

M10

2шт.

25

F6826681

LARGE PLATE

PLATE, LARGE SUPPORT, 90131 REPLACE: H3126328

1шт.

26

W3237454

PLASTIC PLUG

BLANK-OFF F18

1шт.

27

R3037441

PLASTIC PLUG

F35

1шт.

28

X8128244

SUPPORT

SHEET, 90131 688B CK (120499-)

1шт.

29

P4637687

SPACER

TUBE, 90131 688B CK (120499-)

2шт.

30

120074

BOLT,Hex, M10 x 90, 8.8

90131 688B CK (120499-)

2шт.

31

N7722791

SHIM,1.5mm Thk

Dia = 30

1шт.

31

P7722792

SHIM,2mm Thk

Dia = 30

1шт.

31

Q7722793

SHIM,3mm Thk

Dia = 30

1шт.

31

R7722794

SHIM,4mm Thk

Dia = 30

1шт.
